Products Description

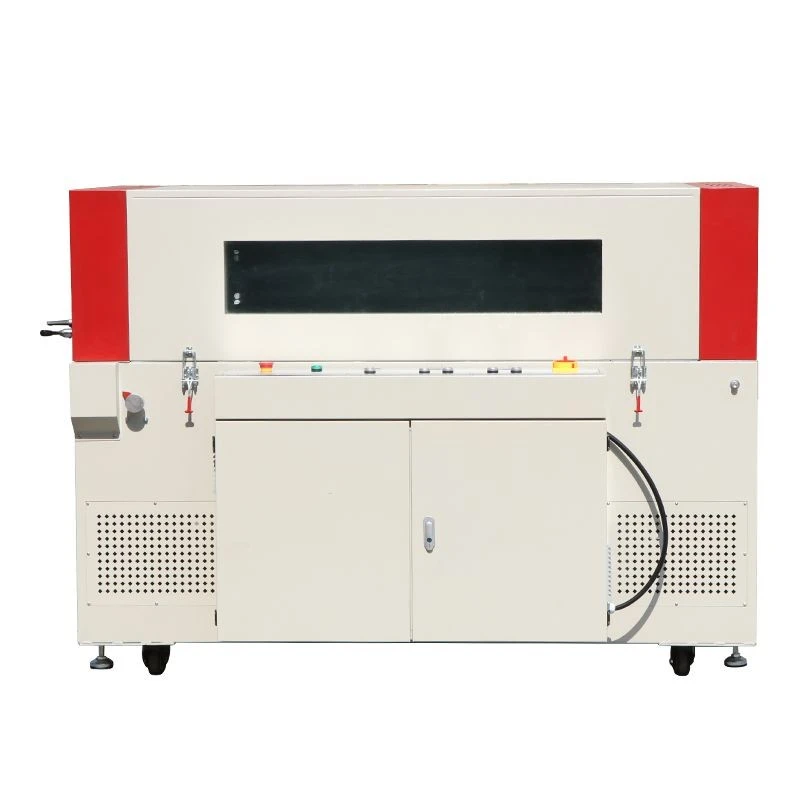

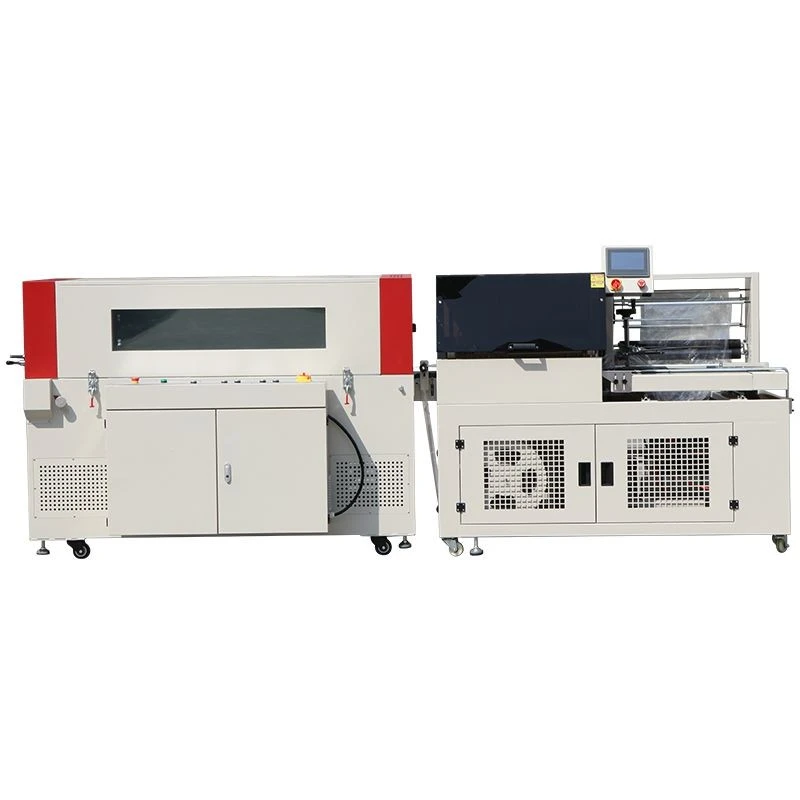

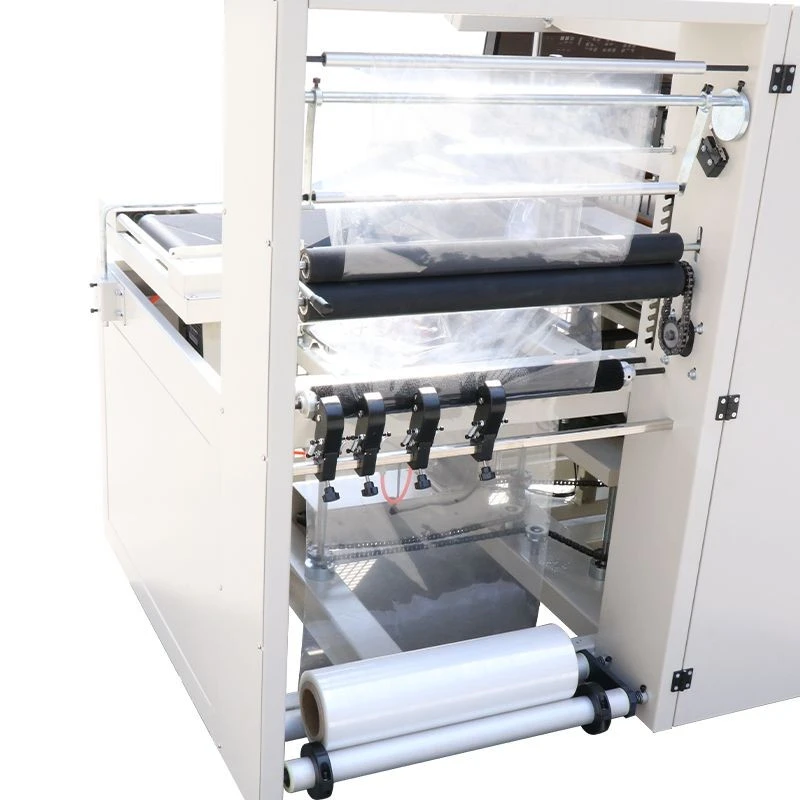

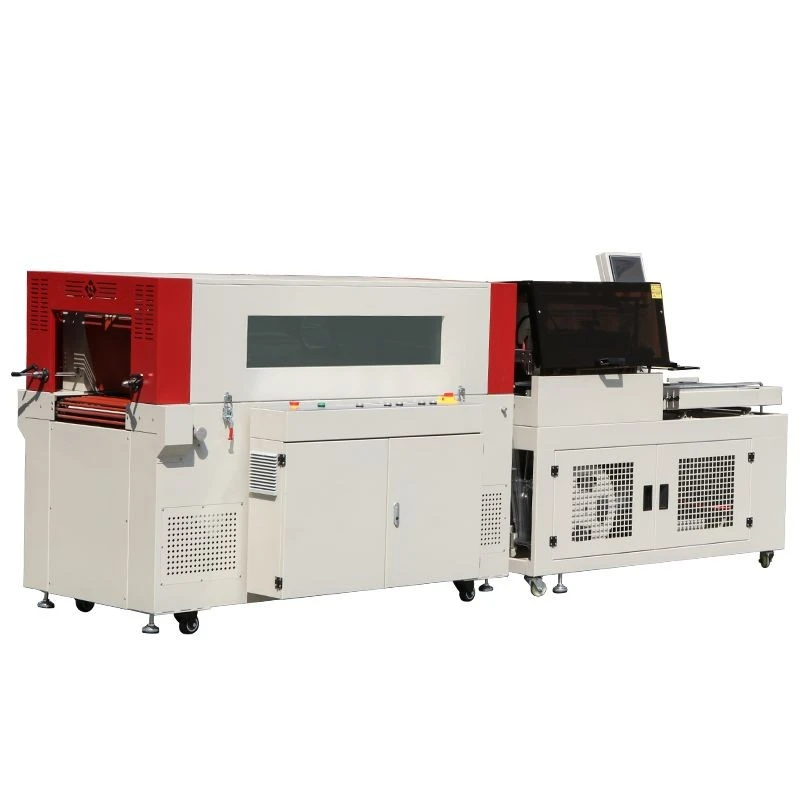

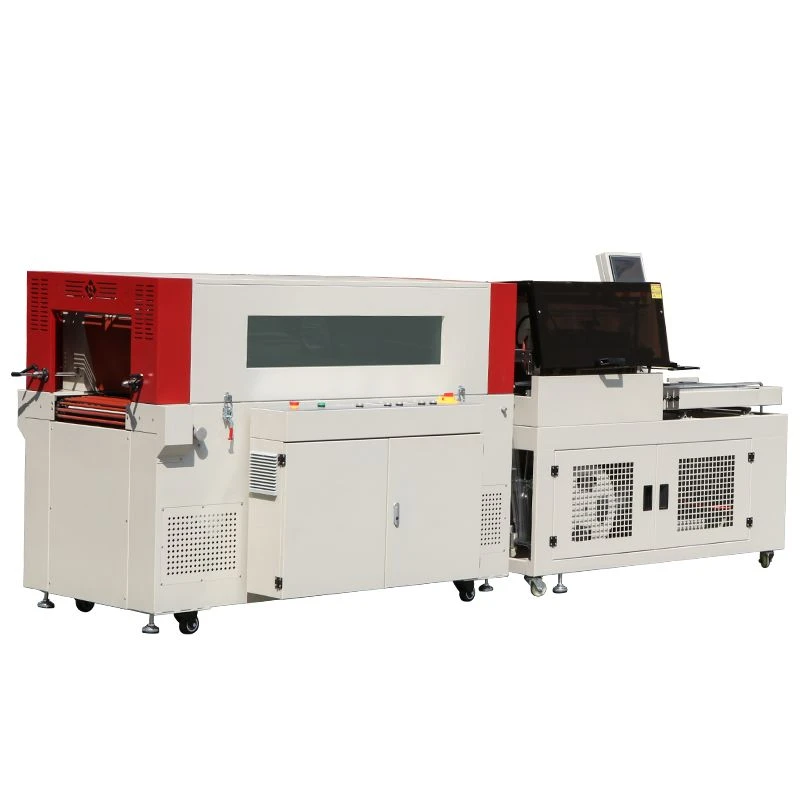

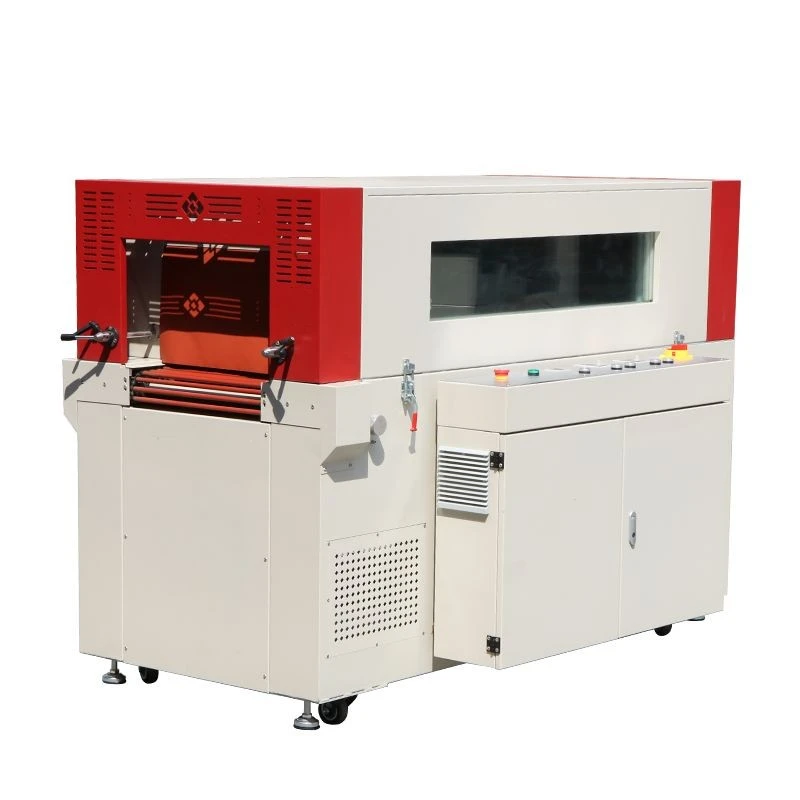

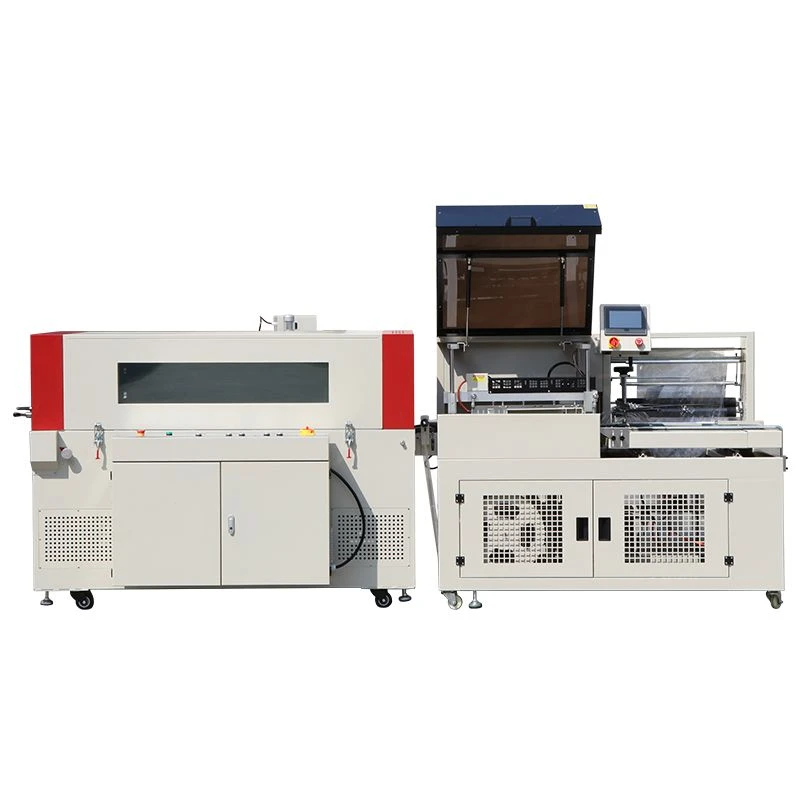

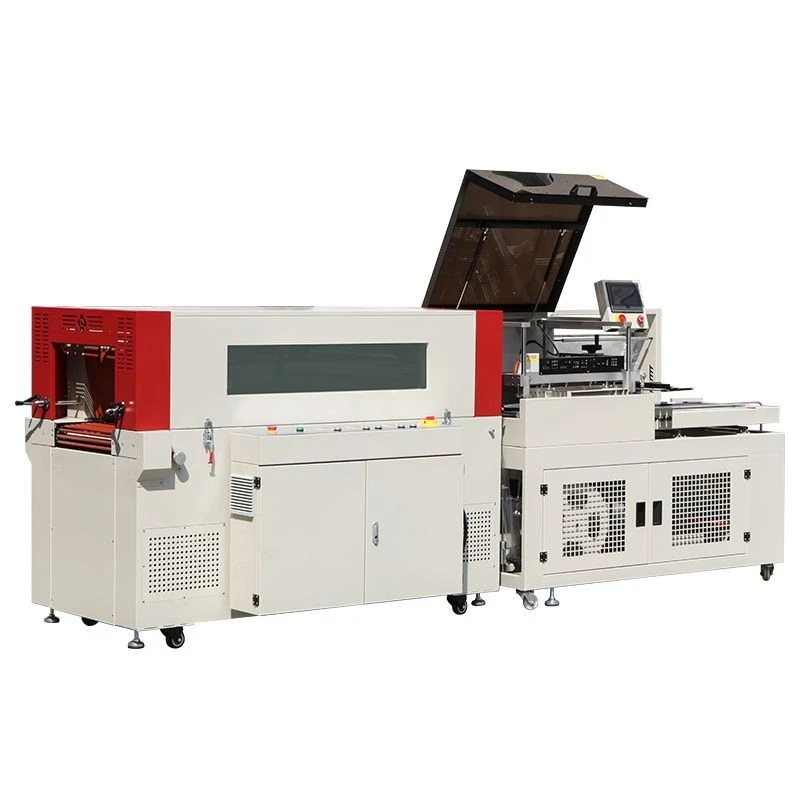

Can Shrink Bundling Machine wraps several cans or bottles together with sleeve film and sends the group through a heat tunnel. It is used for beverage multipacks, trayless bundles and grouped containers that need to stay together during handling. The machine route includes infeed guide, film feed, sealing section, mesh-belt conveyor and shrink tunnel.
Product Parameters
|
Parameter |
Specification |
|
BSE-PE Models |
BSE-6040PE / BSE-7040PE / BSE-8040PE |
|
Power Supply Voltage |
380V 50Hz |
|
Power |
20kW / 22kW / 22kW |
|
Conveying Speed |
0-15 m/min |
|
Shrink Furnace Size |
L1500*W600*H400mm / L1500*W700*H400mm / L1500*W800*H400mm |
|
Conveying Load |
30kg |
|
Conveying Method |
Mesh belt |
|
Applicable Shrink Film |
PE, POF |
|
Overall Dimensions |
L2500*W950*H1600mm / L2500*W1050*H1600mm / L2500*W1150*H1600mm |
|
Pack Type |
Grouped cans, bottles and multipacks |
Product Advantages

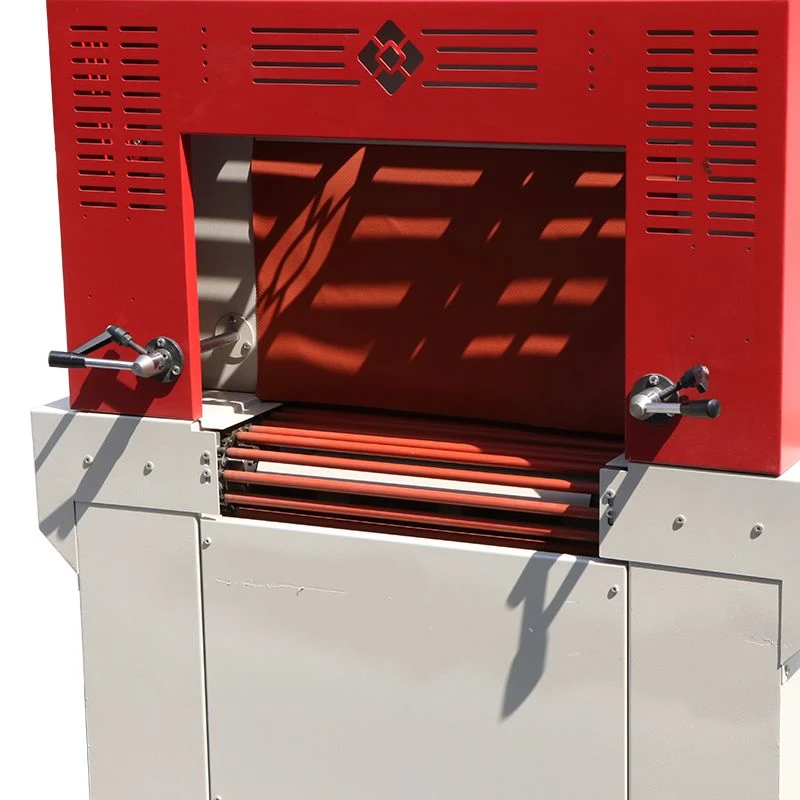

The BSE-PE tunnel series uses mesh-belt conveying, which supports grouped cans and bottles during heat shrinking.
High-power fan motors keep hot air circulating through the furnace area.
The reinforced conveying motor helps maintain smooth movement under the listed 30kg load.
A cooling system after the tunnel helps the bundle keep its finished shape.
Different tunnel widths allow selection for small, medium or wider multipack groups.
Main Applications
It is used for drink cans, bottled water, beverage groups, trayless multipacks and light carton bundles.
The machine is suitable when several containers need one film sleeve for storage or transport.
For multi-row packs, the group pattern should be tested slowly before speed is raised.
Quality Check
- We check group spacing, film overlap, mesh belt travel and outlet guide position.
- The finished bundle is reviewed after cooling for pack squareness and side film tightness.
- Conveying load is checked against the 30kg catalogue value.
FAQ
Q: Which film is suitable for Can Shrink Bundling Machine?
A: PE and POF are listed for the BSE-PE tunnel series. The final choice depends on group weight and shrink tightness.
Q: Which models are available?
A: The catalogue lists BSE-6040PE, BSE-7040PE and BSE-8040PE.
Q: What should be tested before batch running?
A: Test group spacing, film overlap, tunnel speed, tunnel temperature and the cooled pack shape.
