Products Description

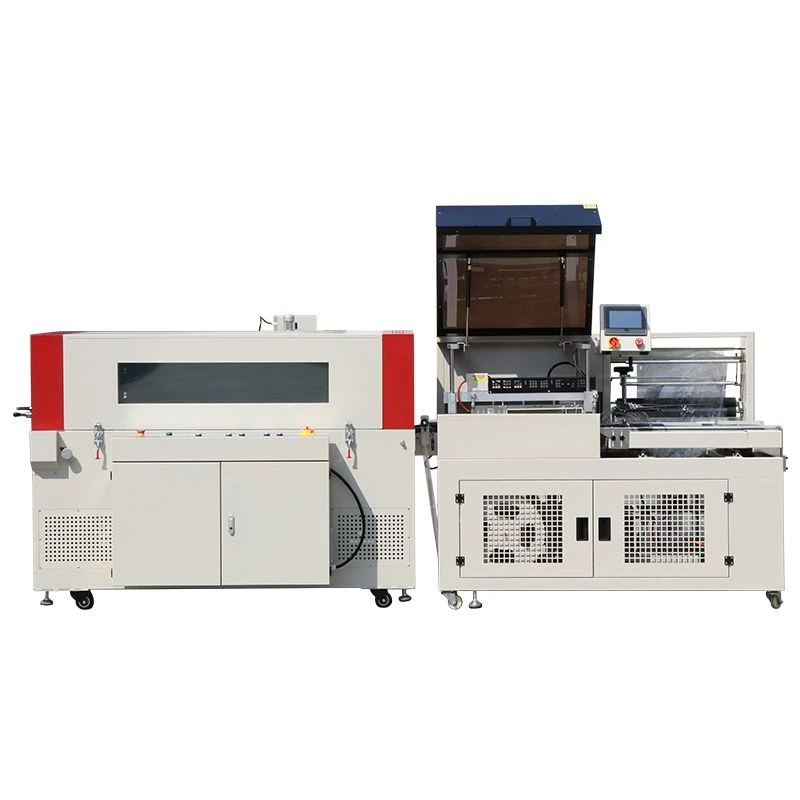

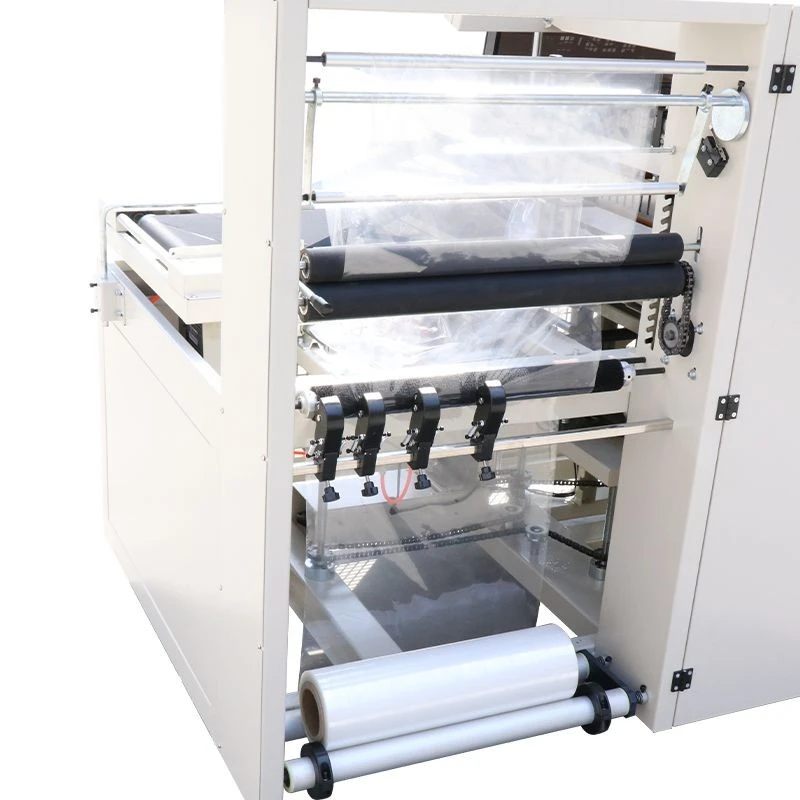

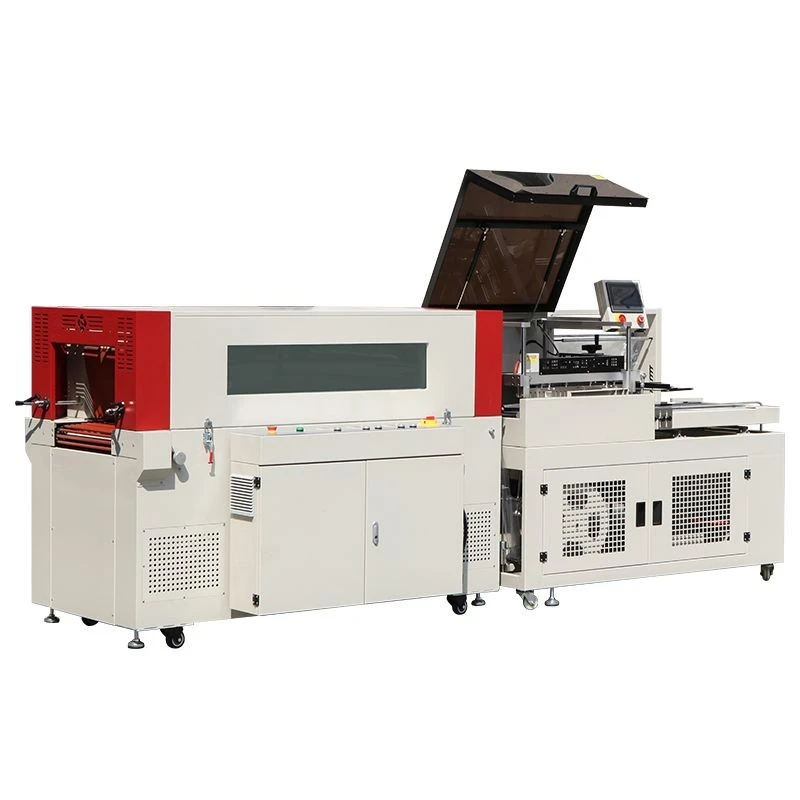

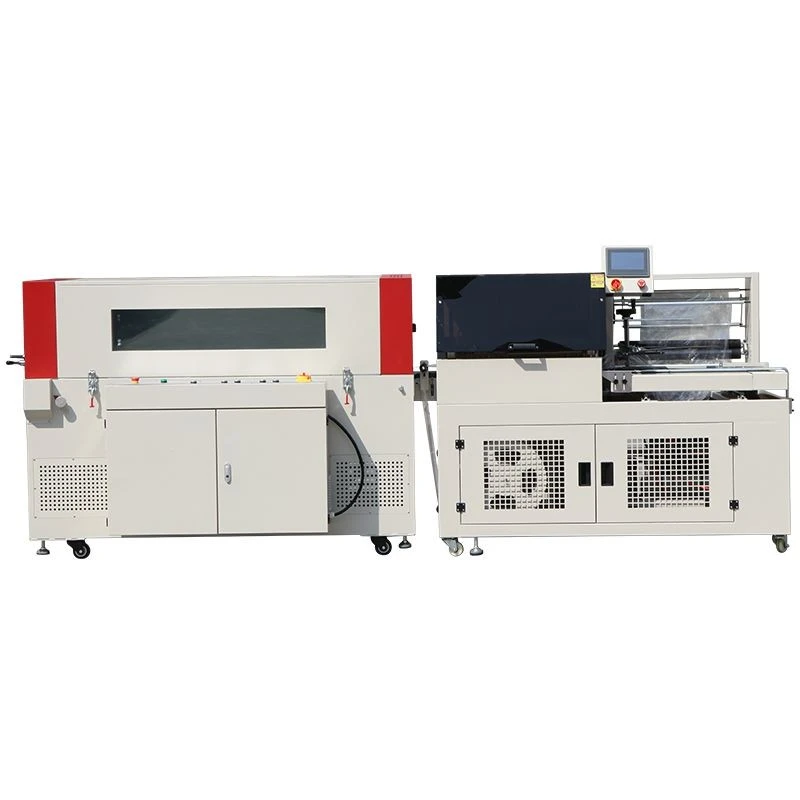

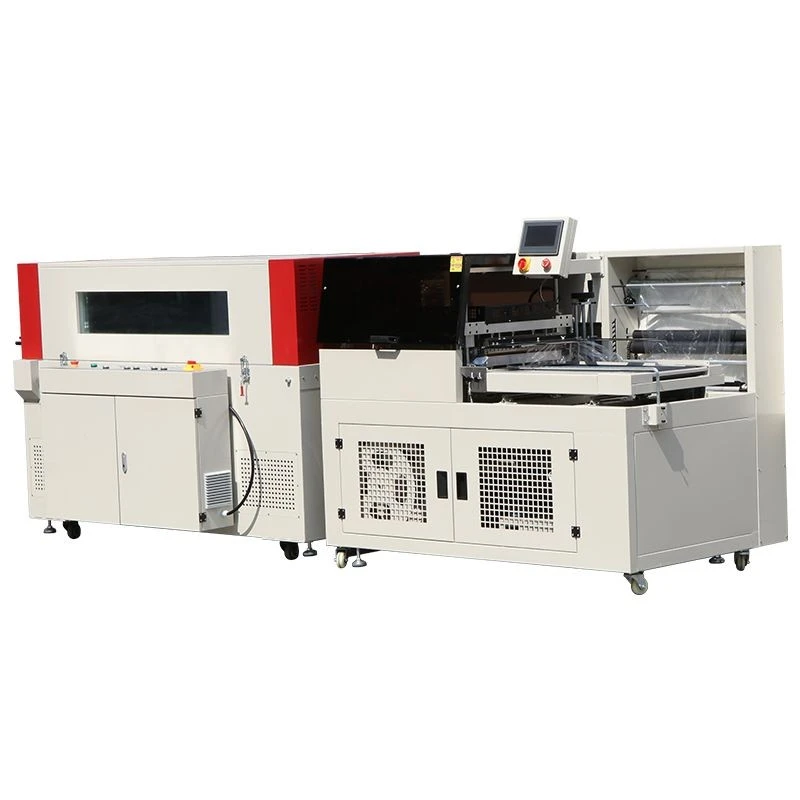

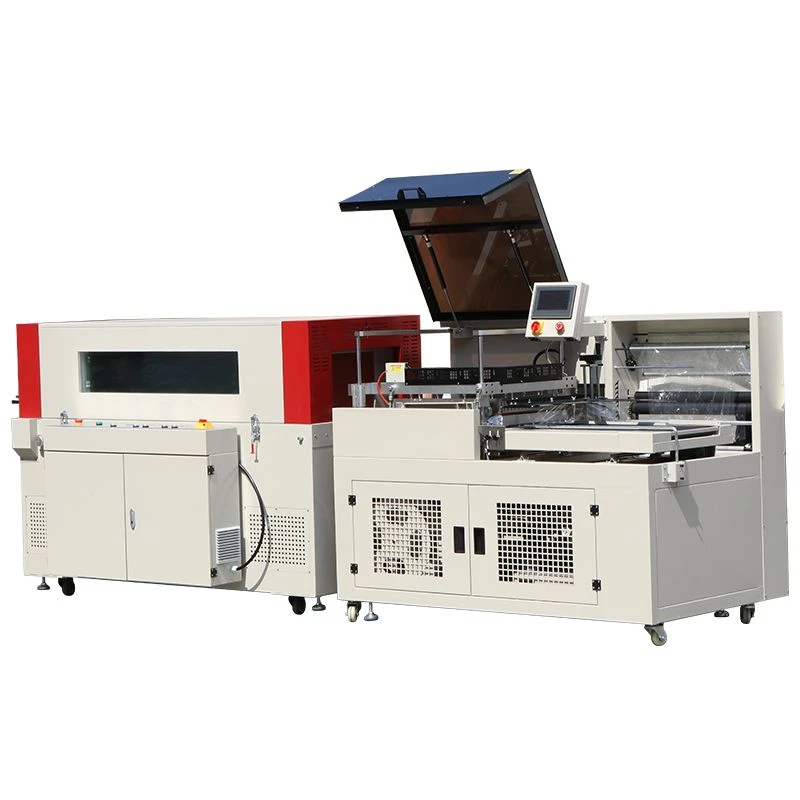

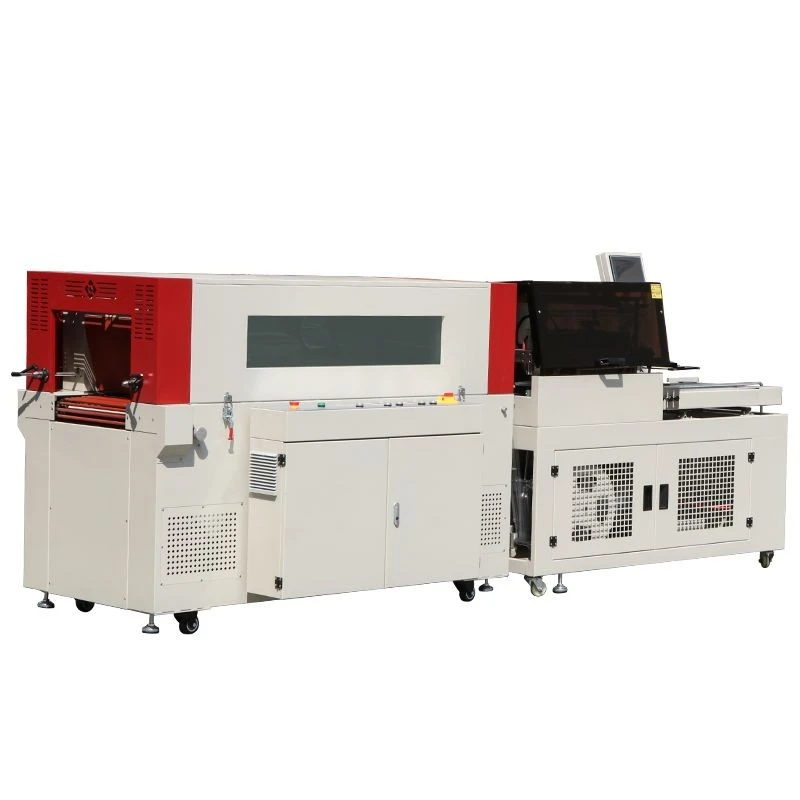

Pharmaceutical Box Shrink Wrapping Machine wraps medicine cartons before storage, delivery or retail display while keeping printed text and batch information visible. The carton enters the L-bar sealing section, the film is sealed around it, and the package passes through the shrink tunnel for a tight cover. The structure includes film holder, sealing knife, conveyor, shrink tunnel and control system.
Product Parameters
|
Parameter |
Specification |
|
Sealer Range |
FQL-450 / FQL-550 / FQL-650 |
|
Tunnel Range |
BSE-4525 / BSE-5530 / BSE-6530 |
|
Sealer Power Supply |
AC220V 50Hz |
|
Sealing Temperature |
180-300°C |
|
Sealing Time |
0.2-1.2s |
|
Film Thickness |
0.012-0.03mm |
|
Packaging Speed |
0-40 pcs/min |
|
Tunnel Conveying Speed |
0-15 m/min |
|
Applicable Shrink Film |
PE, POF, PVC, PP |
|
Key Carton Check |
Batch-code area, printed panel and corner tightness |
Product Advantages
The L-bar sealing section helps keep the film seam away from important printed information.
Tunnel temperature and conveying speed can be adjusted after the first carton sample is checked.
Chain-stick conveying supports stable movement for small medicine cartons.
The machine can use the BSE tunnel range with PE, POF, PVC or PP shrink film.
Guard covers and alarm checks support safer operation during repeated carton runs.
Main Applications
It is used for medicine cartons, healthcare boxes, small paper boxes and retail pharmacy packs.
The machine is suitable when printed text, batch codes and the main front panel need to remain visible.
For several carton heights, the tallest sample should be tested before smaller sizes.
Quality Check
- We check film tightness, corner shape, label visibility and batch-code area after shrinking.
- Film scraps and dust around the sealing area are reviewed before long running.
- Accessories, electrical response and packing marks are checked before shipment.
FAQ
Q: What film thickness can Pharmaceutical Box Shrink Wrapping Machine use?
A: The FQL sealer table lists 0.012-0.03mm. The real carton and film should be tested together.
Q: Which details affect medicine carton packing most?
A: Carton height, printed area, sealing side, film thickness, tunnel temperature and conveying speed affect the result.
Q: Can it run different carton sizes?
A: Yes, if the sizes stay within the sealing frame and tunnel opening, and each sample is checked.
