Products Description

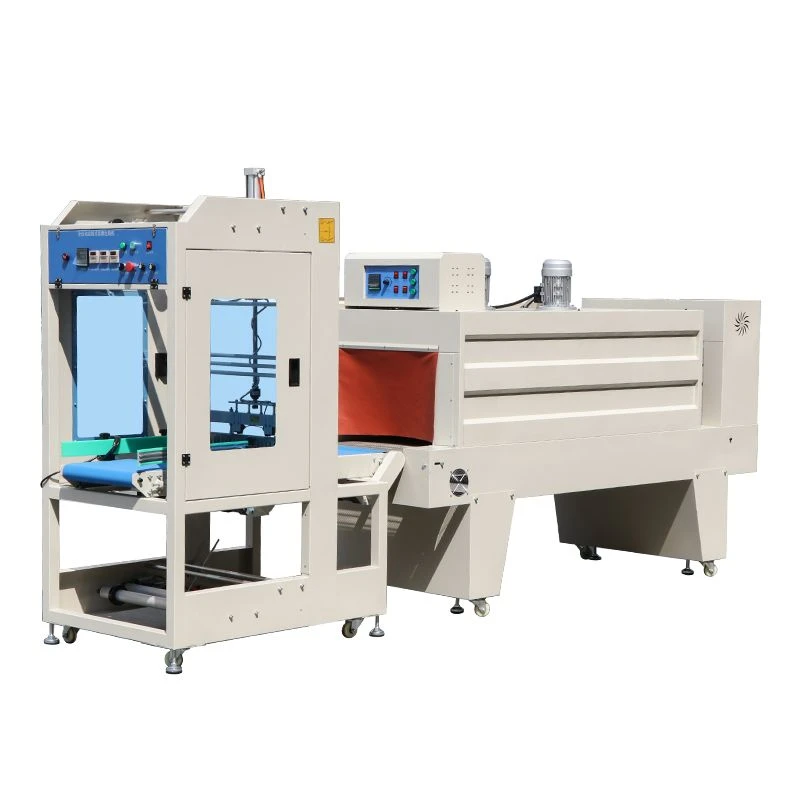

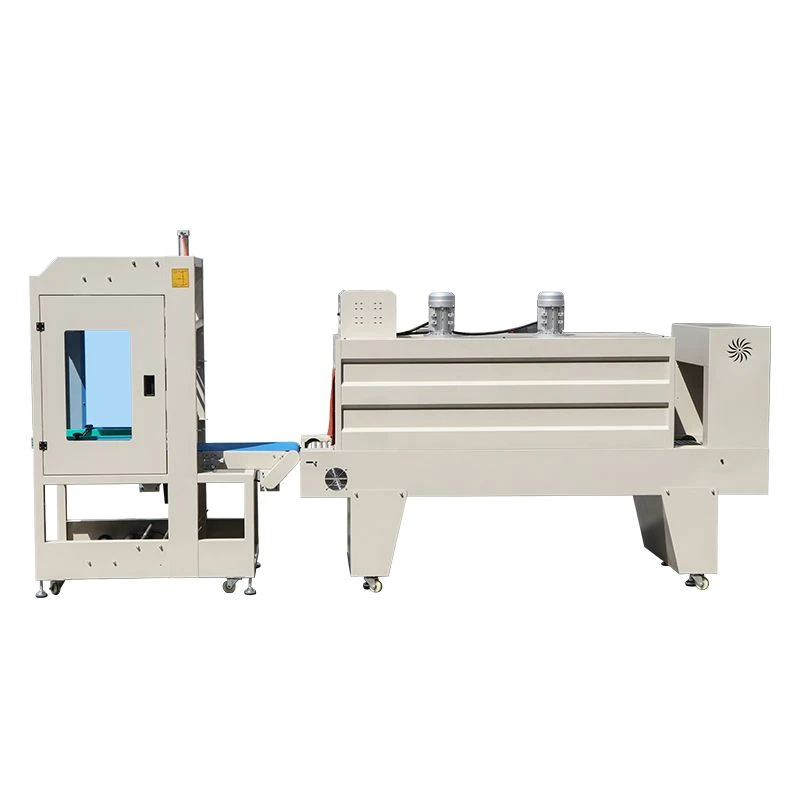

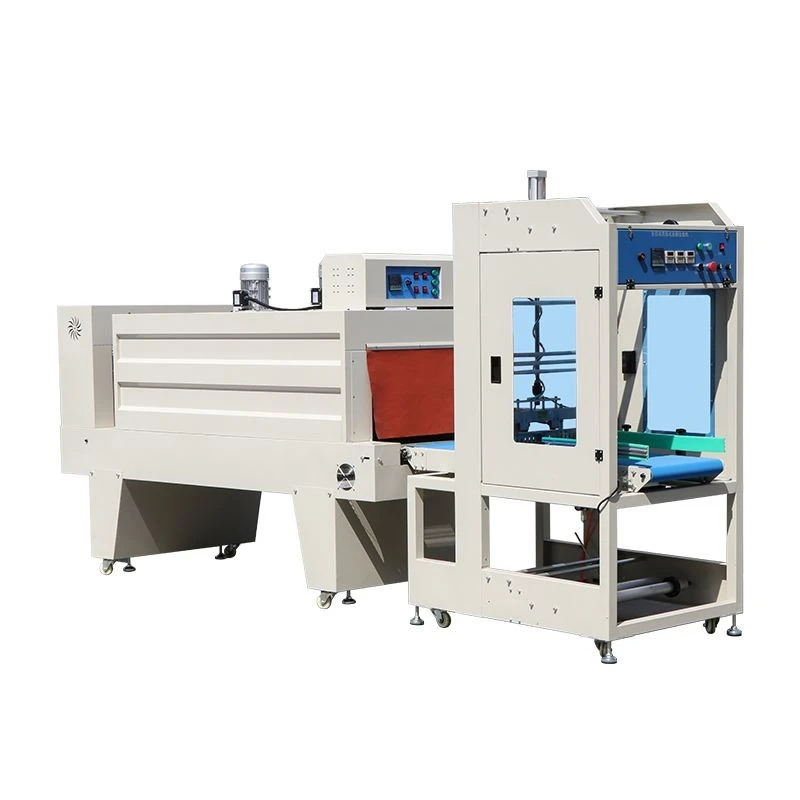

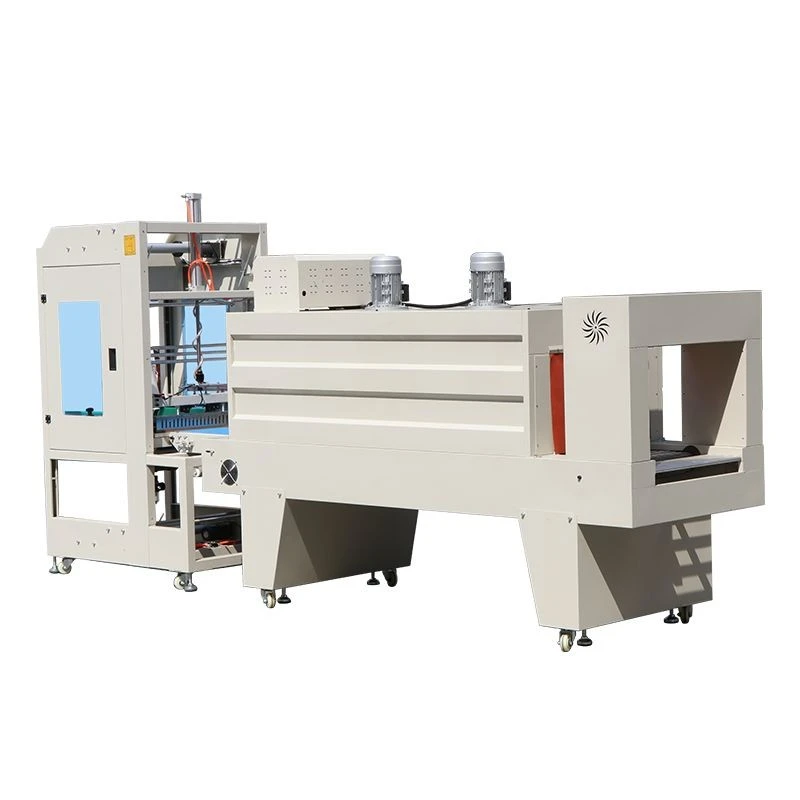

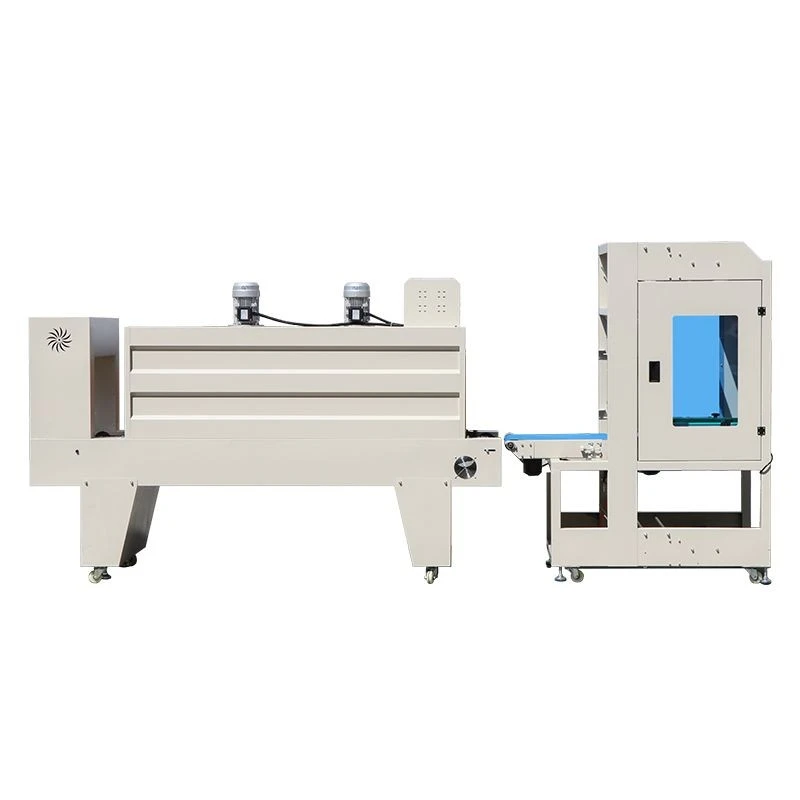

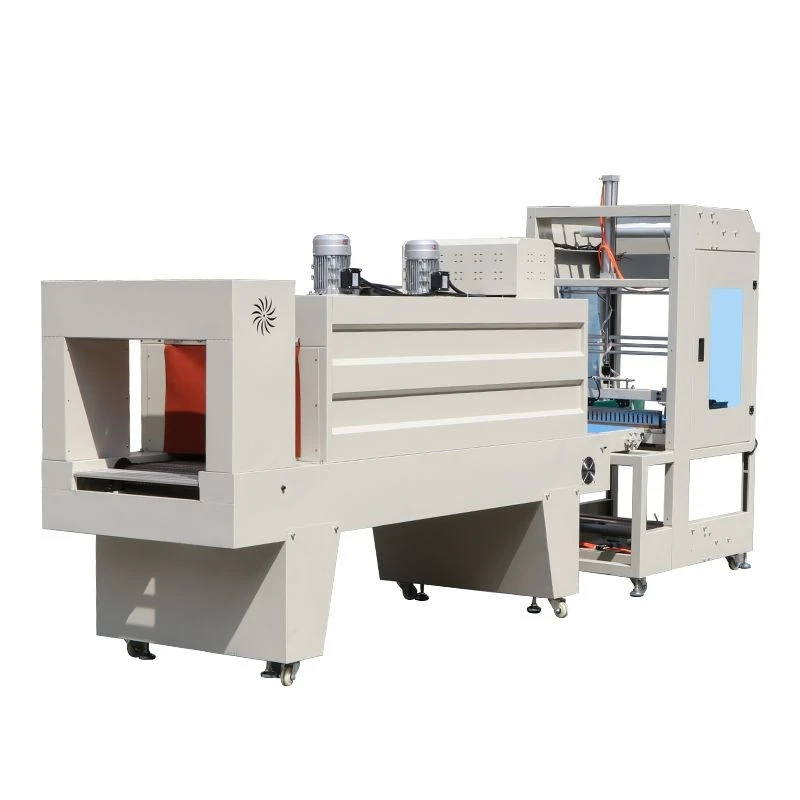

High Speed Shrink Wrap Machine is used on continuous packing lines where products need film covering without frequent stops. The product is fed forward, the film sleeves around it, the side seal is made, and the pack moves through the shrink area. Its core structure includes the film feed, side sealing unit, conveyor, shrink section and control panel.
Product Parameters
|
Parameter |
Specification |
|
Models |
HY-5525S / HY-5030W |
|
Packaging Speed |
15-40 pcs/min / 20-80 pcs/min |
|
Maximum Temperature |
240°C / 200°C |
|
Power Supply |
Single-phase 220V 50-60Hz / 220V or 380V 50Hz by model |
|
Power |
3.0kW / 16kW |
|
Sealing Mode |
Side seal with shrink wrapping line |
|
Film Handling |
Feeding, film sleeving, sealing, cutting and shrinking |
Main Applications
This machine is used for retail packs, daily-use products and grouped goods that need steady output.
High-speed work depends on stable product spacing as much as the listed machine speed.
For glossy boxes or printed packs, the first test is checked after cooling so marks are not missed.
Longer products need the side seal to track with the conveyor instead of drifting with film tension.
When the target speed is high, film roll change space should be left open around the operator side.
The catalogue speed range helps set a realistic trial plan before continuous running.
Components

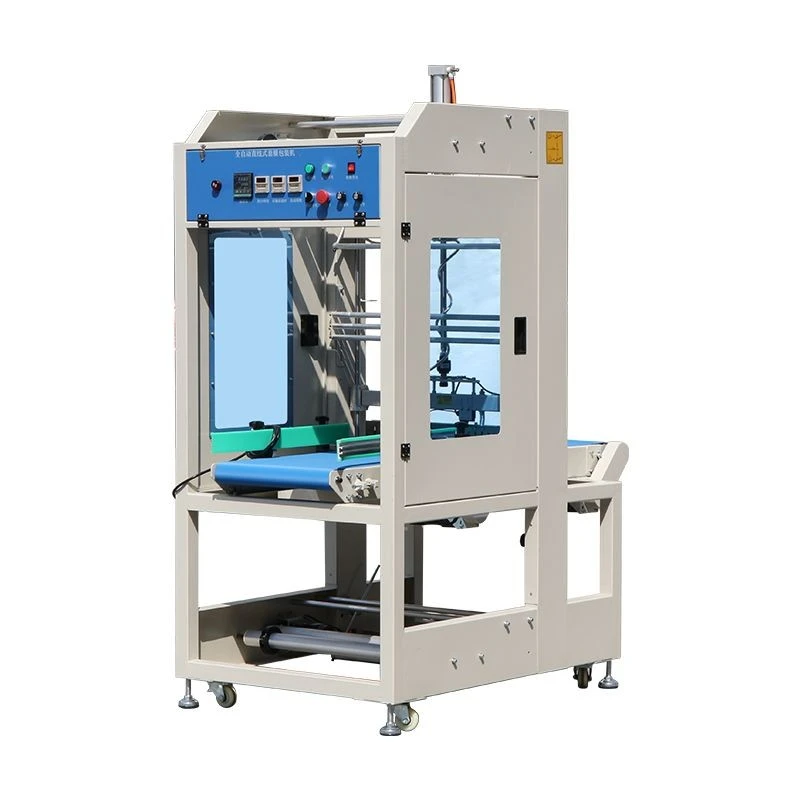

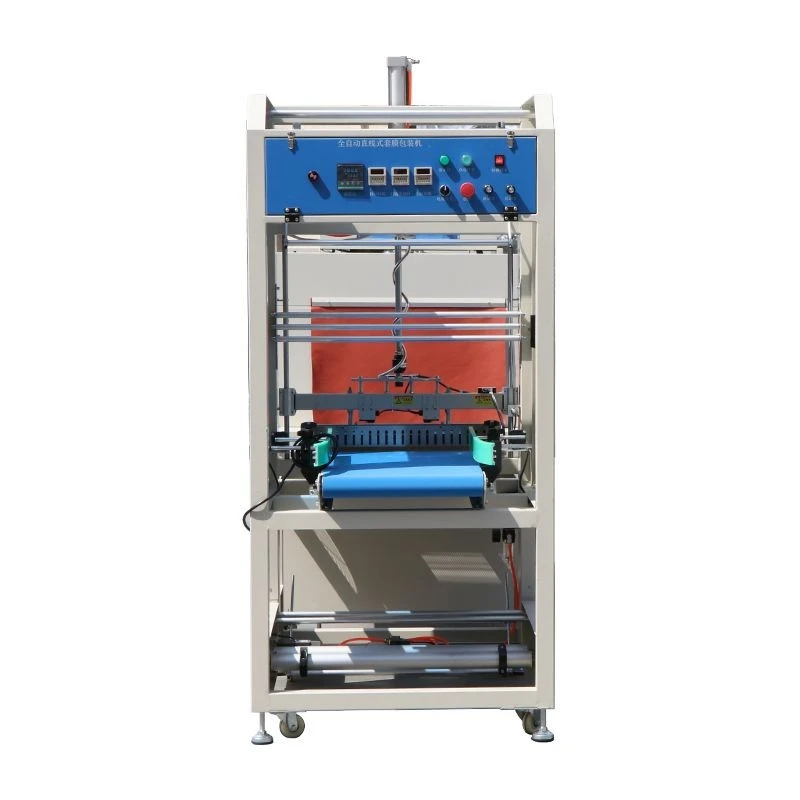

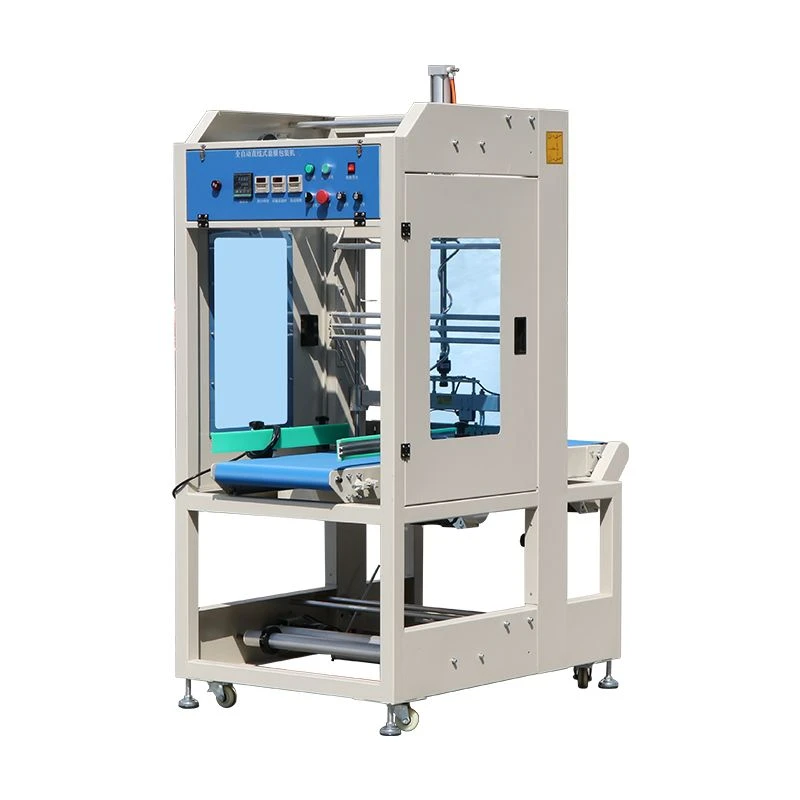

The line includes a film feeding path, sealing unit, conveyor and shrink section.
The control panel is kept easy to reach during trial adjustment.
If an upstream line is connected, inlet height and signal timing should be checked together.
FAQ
Q: What speed is listed for High Speed Shrink Wrap Machine?
A: The catalogue lists 15-40 pcs/min for HY-5525S and 20-80 pcs/min for HY-5030W.
Q: What should be tested before batch running?
A: Product spacing, side seal position, film tension, tunnel temperature and cooled pack shape should be tested.
Q: Can High Speed Shrink Wrap Machine be connected with other equipment?
A: It can, when inlet height, outlet direction, signal timing and floor space are confirmed.
