Products Description

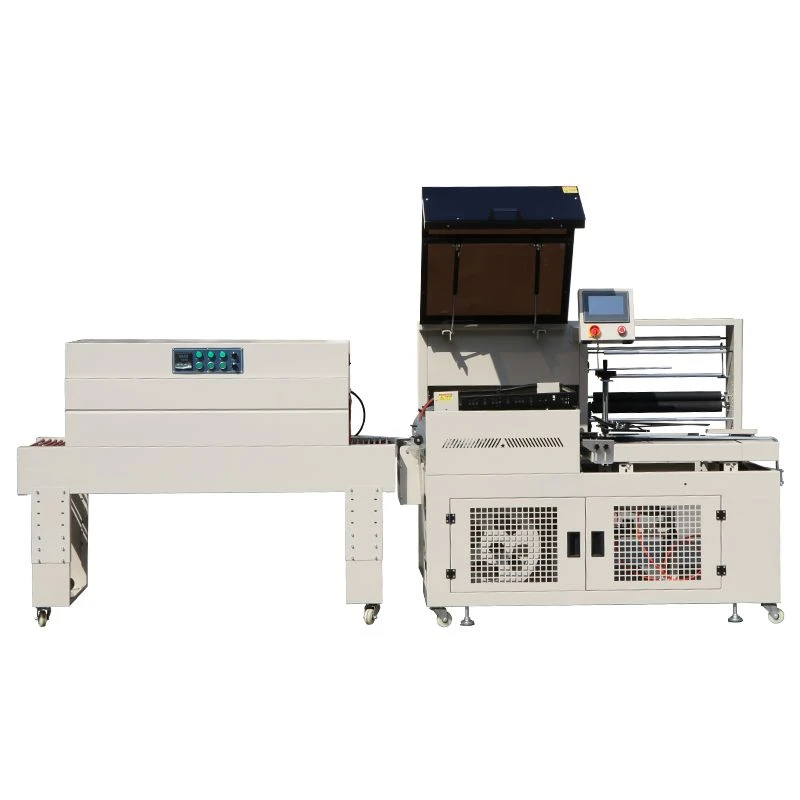

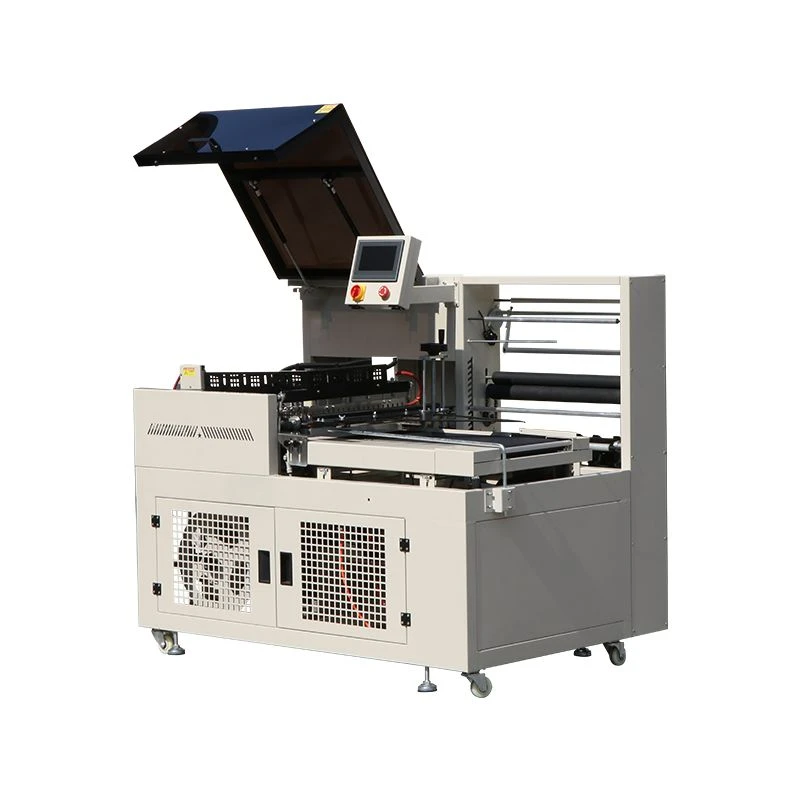

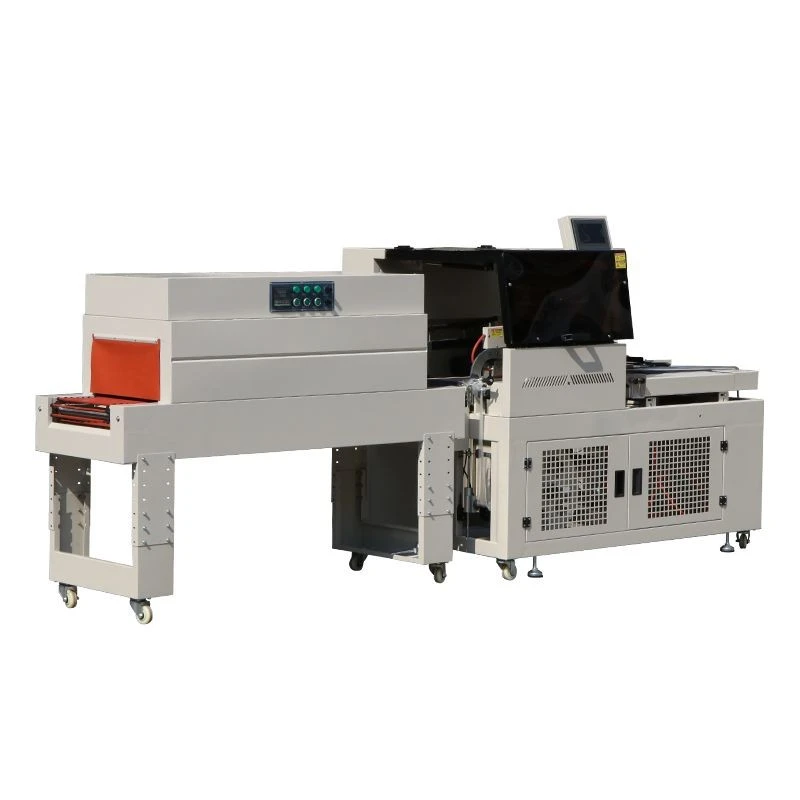

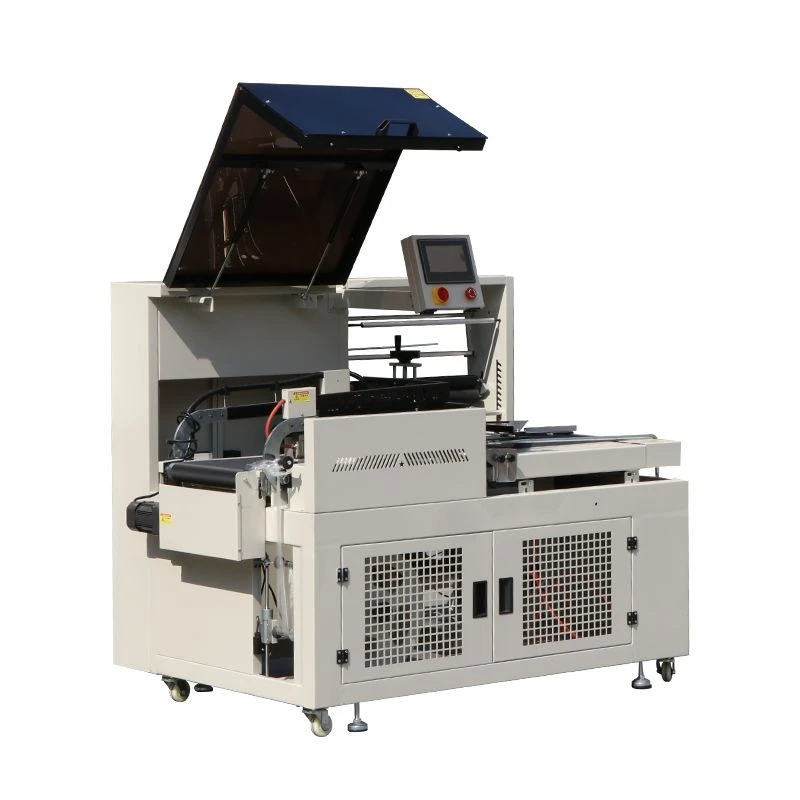

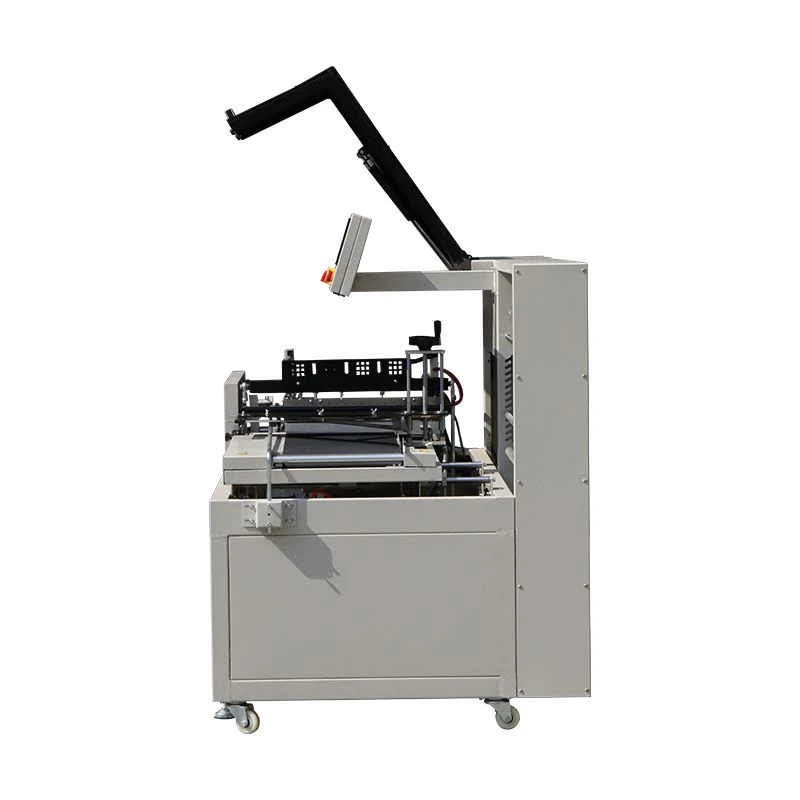

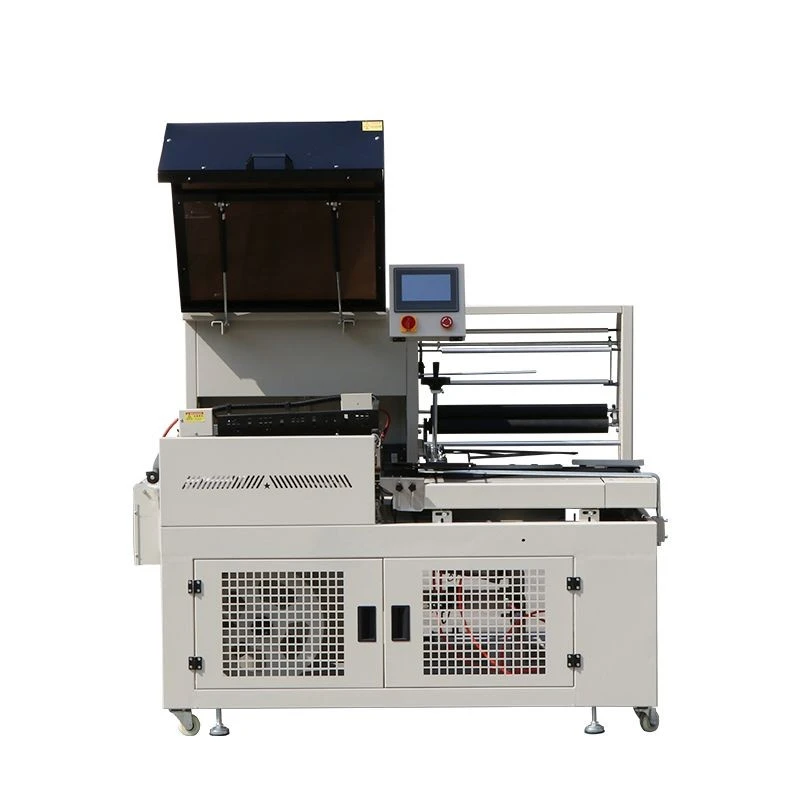

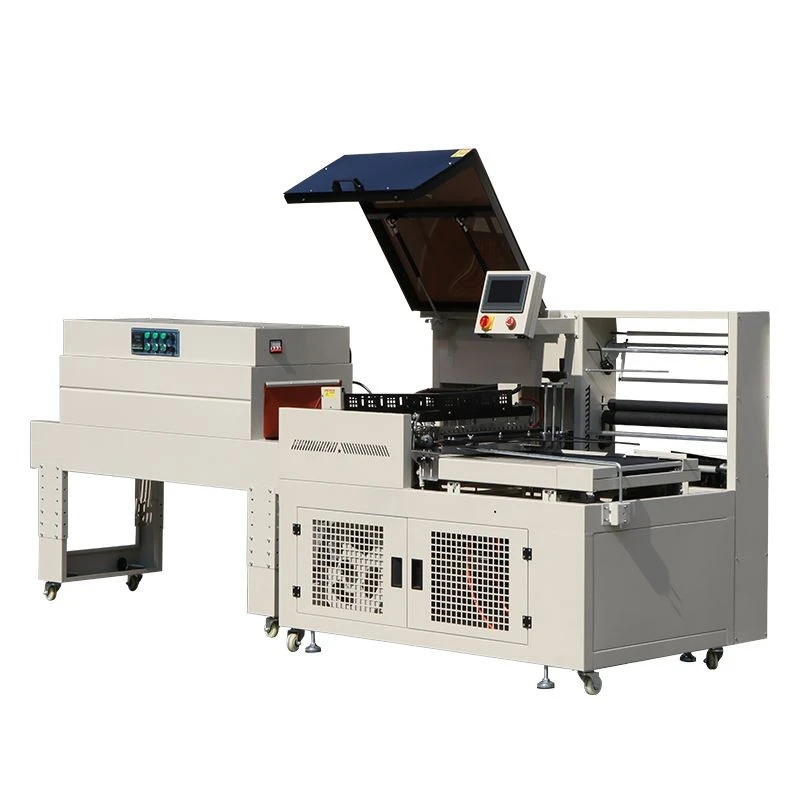

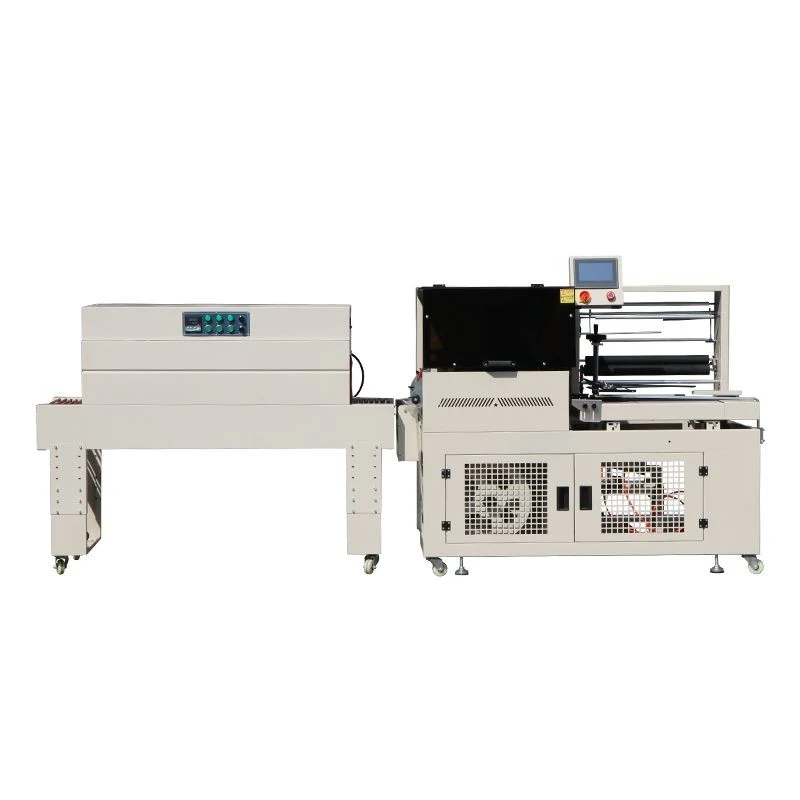

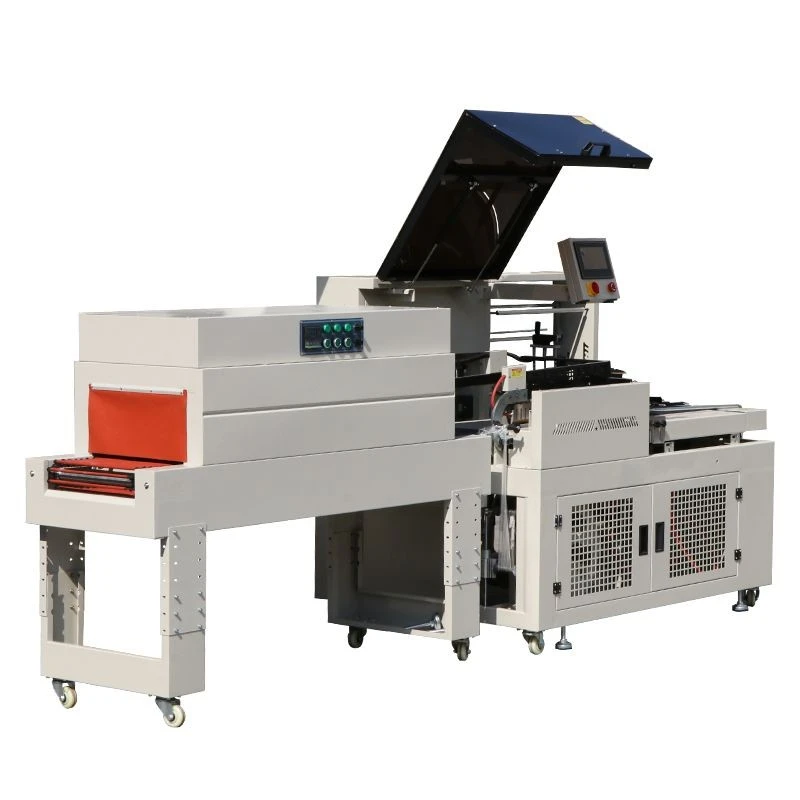

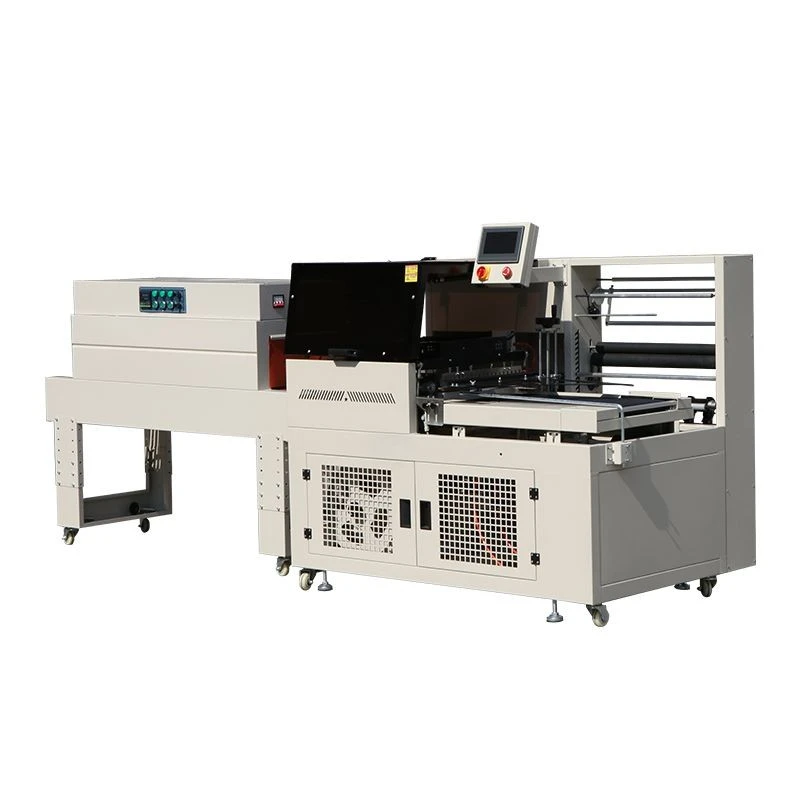

Continuous Side Sealer Shrink Wrapper packs products that move through the line without stopping at every seal. The product travels with the film, the side seal closes along the package edge, and the pack then passes through the shrink section. Its main structure includes the film holder, side sealing unit, conveyor, temperature control and shrink tunnel connection.
Product Parameters
|
Parameter |
Specification |
|
Models |
HY-5525S / HY-5030W |
|
Packaging Speed |
15-40 pcs/min / 20-80 pcs/min |
|
Maximum Temperature |
240°C / 200°C |
|
Power Supply |
Single-phase 220V 50-60Hz / 220V or 380V 50Hz by model |
|
Power |
3.0kW / 16kW |
|
Sealing Mode |
Side seal with shrink wrapping line |
|
Film Handling |
Feeding, film sleeving, sealing, cutting and shrinking |
Product Process
1. Set product spacing and film roll direction before heating starts.
2. Adjust side seal position and conveyor tracking with a real product sample.
3. Check the cooled pack before raising speed.
Long products should be measured with the full outer package, including raised edges.
The side seal is checked at several points, because a small belt drift can change the seam line.
For continuous work, film scraps should not build up near the sealing area.
Use Notes
Start at a lower speed when a new product or film is used.
Watch product length, side seal position and belt travel during the first batch.
Stop the machine and clean the path if film pieces remain inside.
Packaging
- The machine is packed after trial running and accessory checking.
- Loose parts are tied or boxed to reduce movement during transport.
- Direction marks can be added when the line is shipped in more than one section.
FAQ
Q: What are the main buying checks for Continuous Side Sealer Shrink Wrapper?
A: Product length, film type, target speed, seal side and tunnel connection should be confirmed.
Q: What catalogue speed can be used as reference?
A: HY-5525S lists 15-40 pcs/min and HY-5030W lists 20-80 pcs/min.
Q: What needs daily attention?
A: Clean the film path, check conveyor tracking and inspect the seal line after a product change.
