Products Description

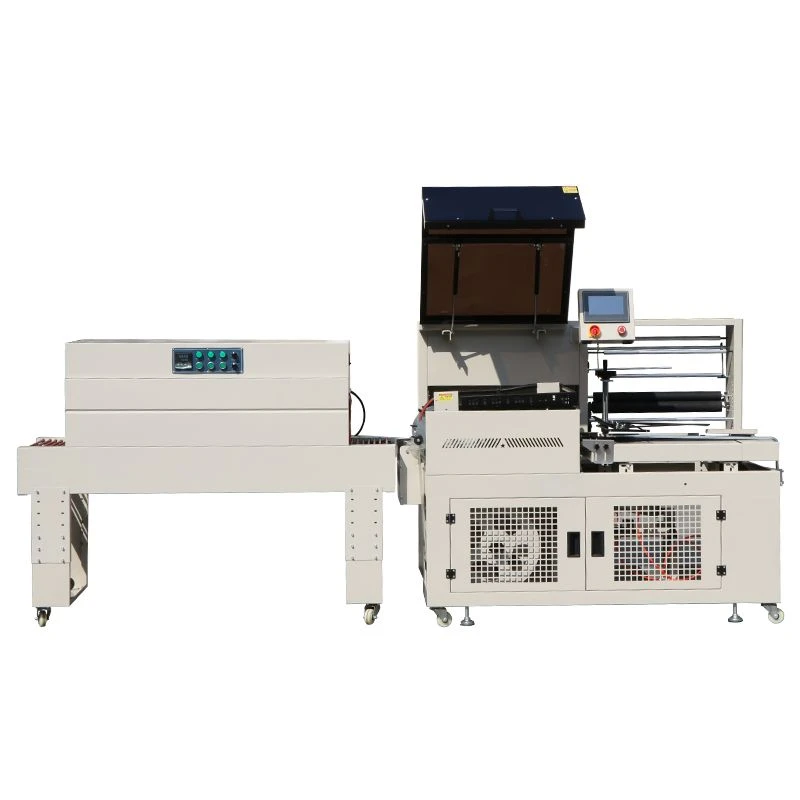

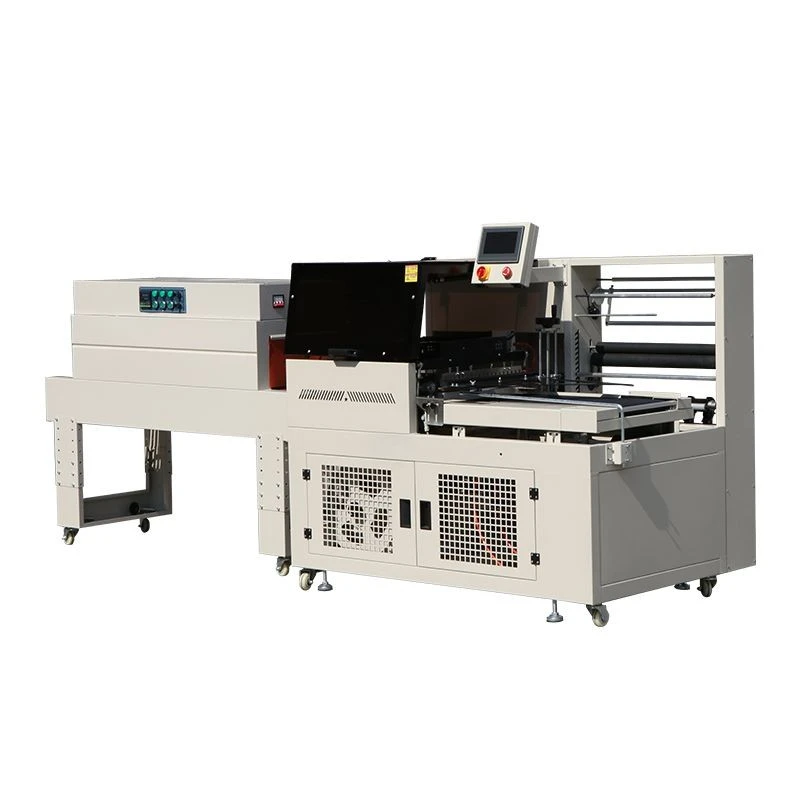

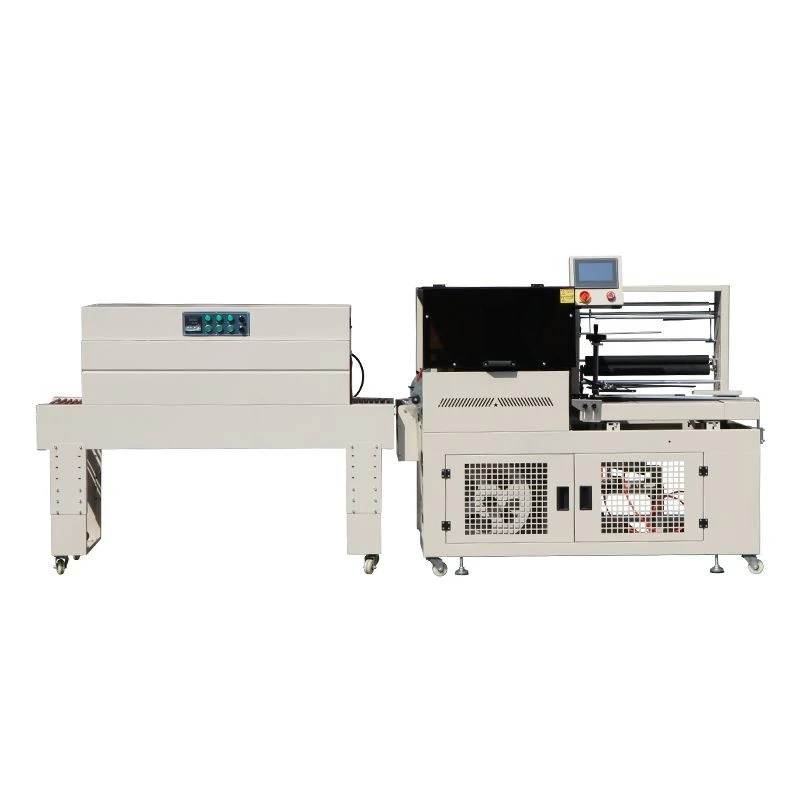

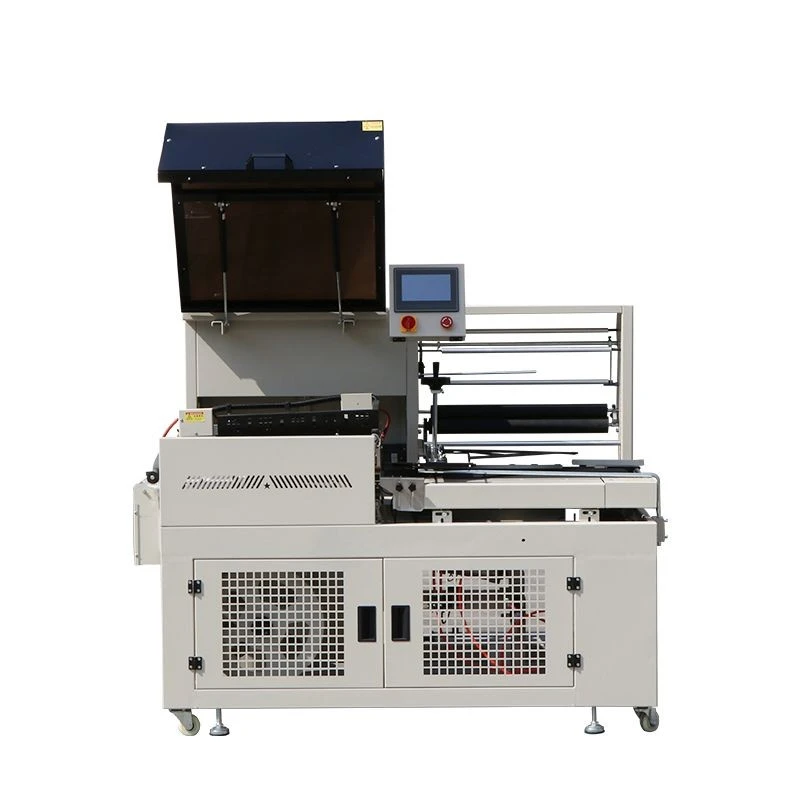

Box Shrink Wrapping Machine covers a box with shrink film, seals the open edge, and uses hot air inside the tunnel to tighten the film after conveying. It is used for outer protection and retail appearance on cartons or box sets. The working route includes film rack, sealing knife, conveyor, shrink chamber, circulation fan, and control panel.
Product Parameters
|
Parameter |
Specification |
|
Matched Sealer |
FQL series L-bar sealing machine |
|
Matched Tunnel |
BSE-4525 to BSE-8530 chain-stick shrink tunnel |
|
Sealer Power Supply |
AC220V 50Hz |
|
Film Thickness |
0.012-0.03mm |
|
Packaging Speed |
0-40 pcs/min |
|
Tunnel Furnace Size |
L1600*W450*H250mm to L1600*W850*H300mm |
|
Tunnel Conveying Load |
30kg |
|
Tunnel Conveying Speed |
0-15 m/min |
|
Applicable Shrink Film |
PE, POF, PVC, PP |
|
Box Check |
Height, printed face and seam side |
Product Advantages

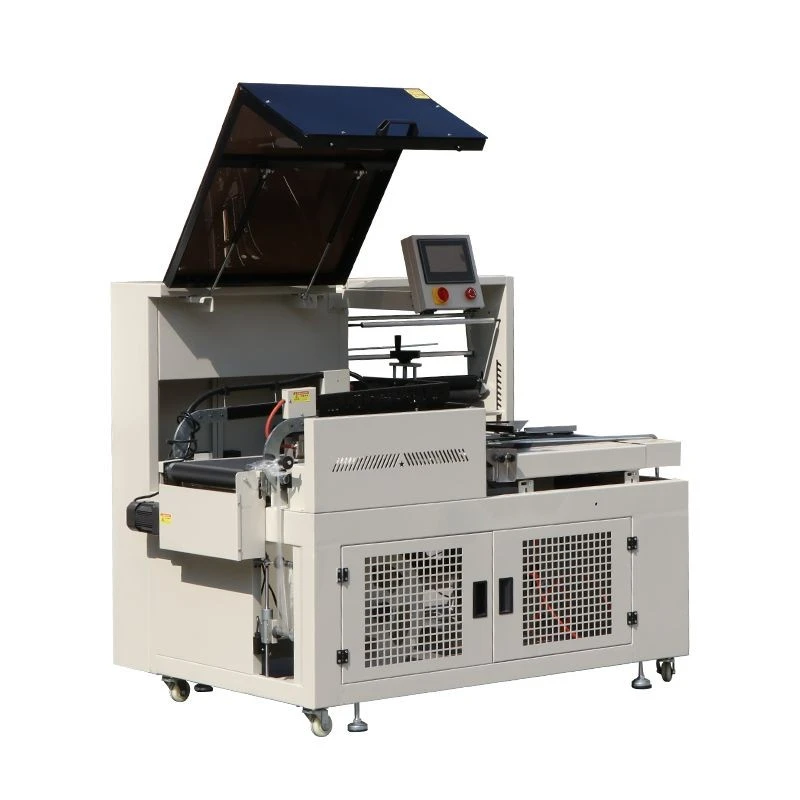

The L-bar section leaves a straight seal line, which is useful for square cartons and printed packs.

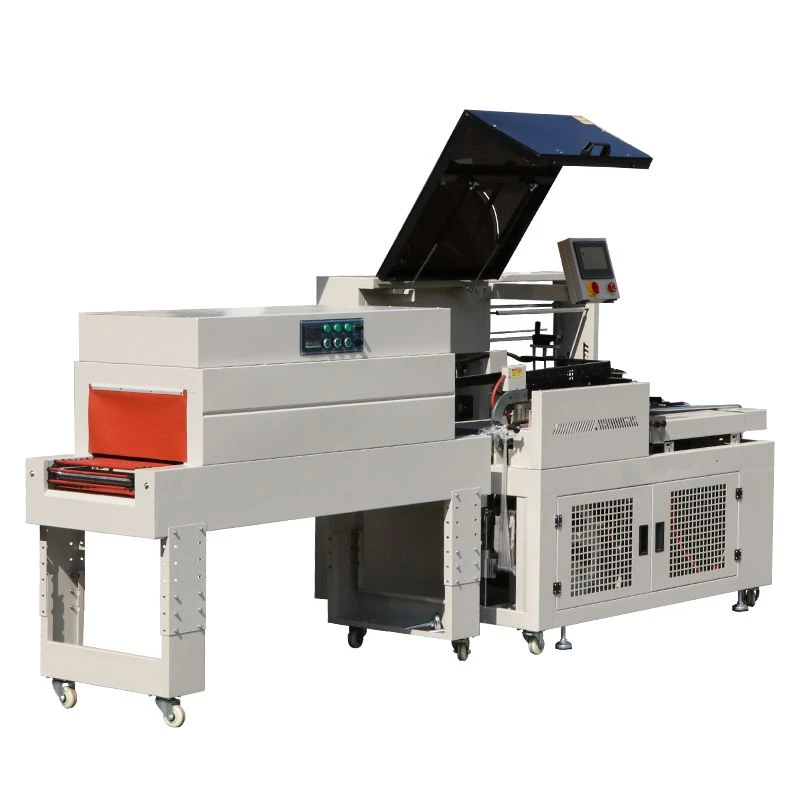

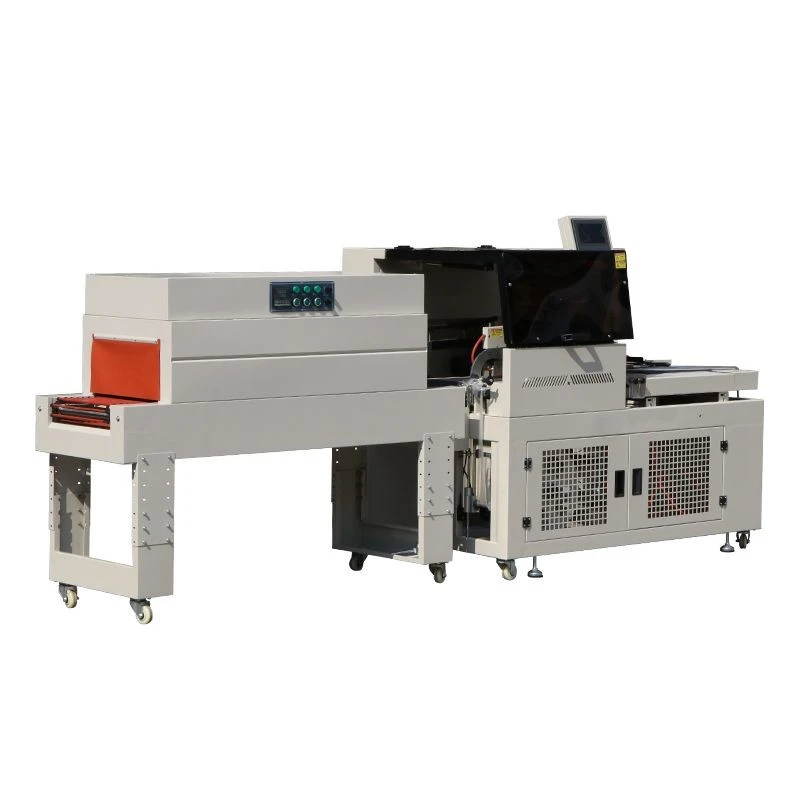

Chain-stick conveying moves the box through the tunnel while the fan sends hot air around the corners.
Adjustable sealing and tunnel temperature help test POF, PE, PVC or PP film with different box weights.
BSE tunnel width can be selected by carton width and height instead of using one fixed chamber size.

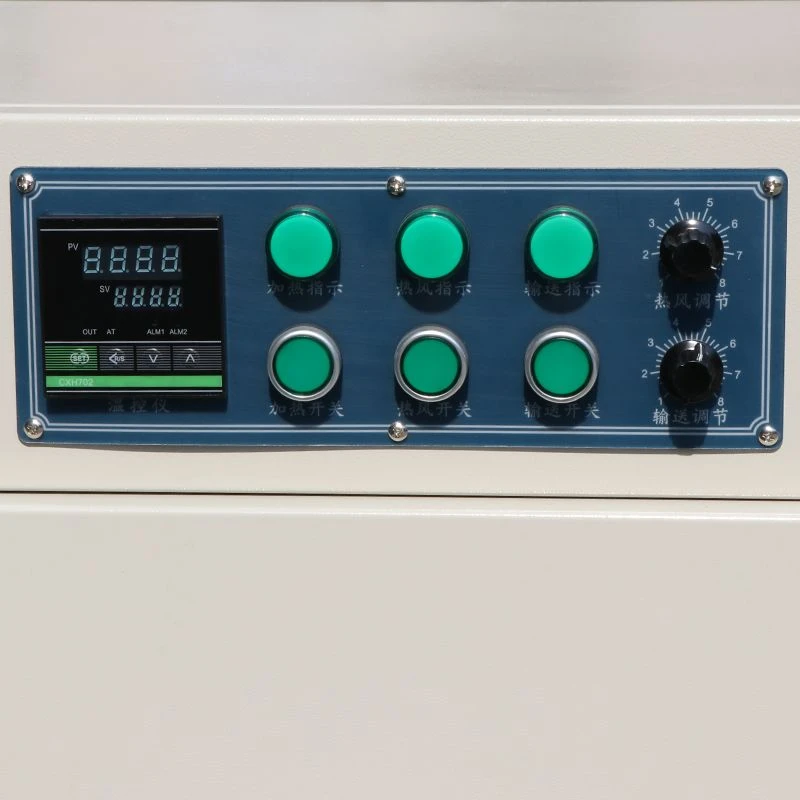

Open control positions let operators watch film feed, seal pressure and the exit shape during sample work.
Main Applications
Box Shrink Wrapping Machine is used for tea boxes, food cartons, stationery cases, toy packs, small appliance boxes and promotional box sets.
It works when a product needs a closed film skin for dust blocking, grouped handling or shelf display.
Cartons with glossy printing should be tested with the display face away from the seam.
Quality Check
We check the seal line, four corner shrink, film holes and cooled package shape.
The largest and smallest box samples are run before the final tunnel setting is noted.
The accepted sample can be kept with the machine file before export packing.
FAQ
Q: What samples are needed for Box Shrink Wrapping Machine?
A: Send actual boxes, film roll, box weight, display face and expected output.
Q: Which tunnel data should be checked first?
A: Check furnace size, 0-15 m/min conveying speed, chain-stick conveying and 30kg load from the BSE table.
Q: Can one line cover several box sizes?
A: Yes, if the box range fits the sealer and tunnel opening, and each regular size is tested with film.
