Products Description

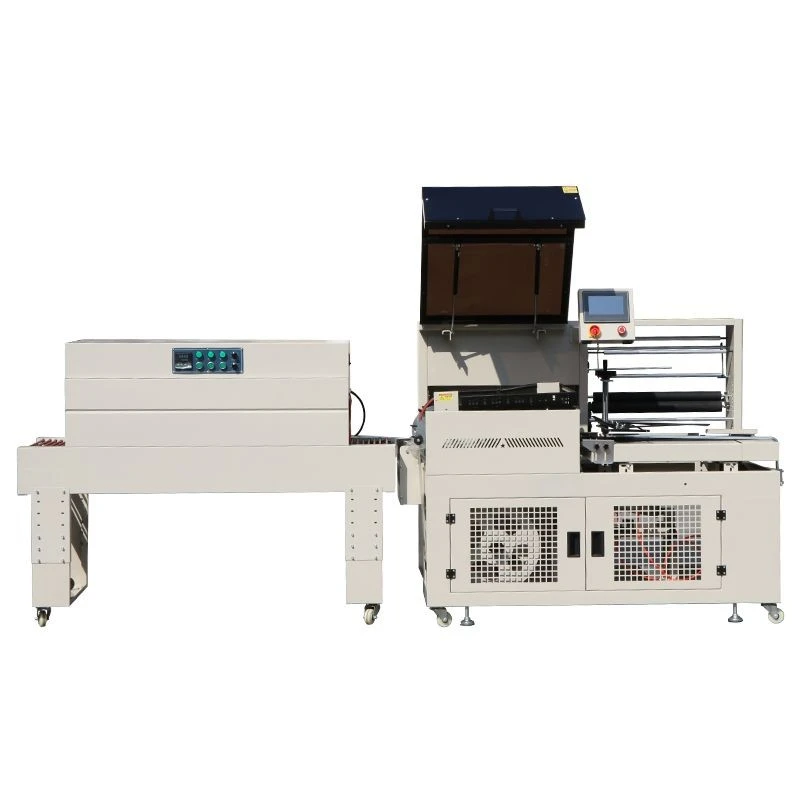

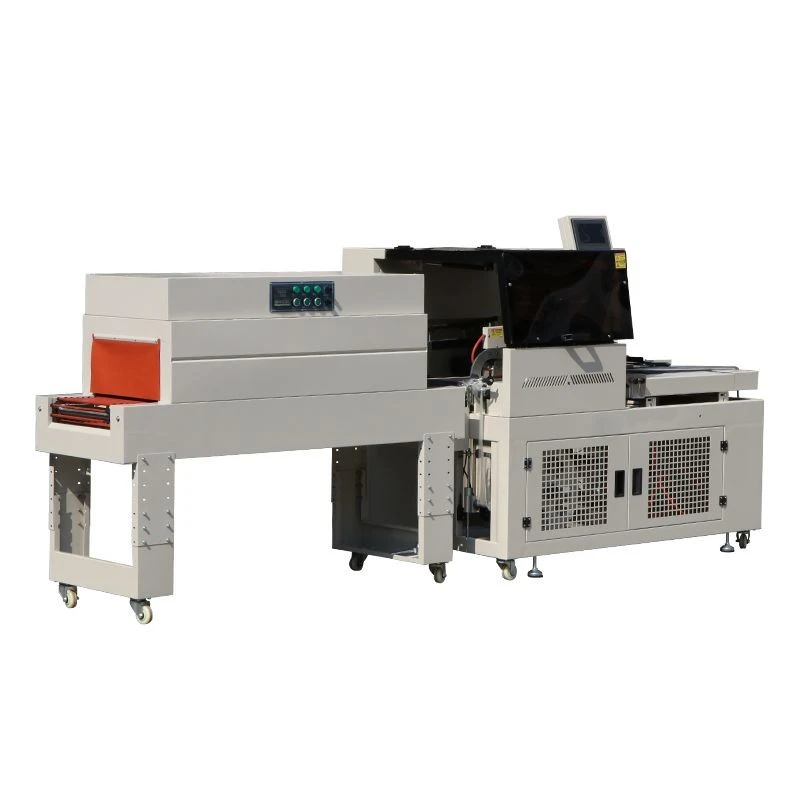

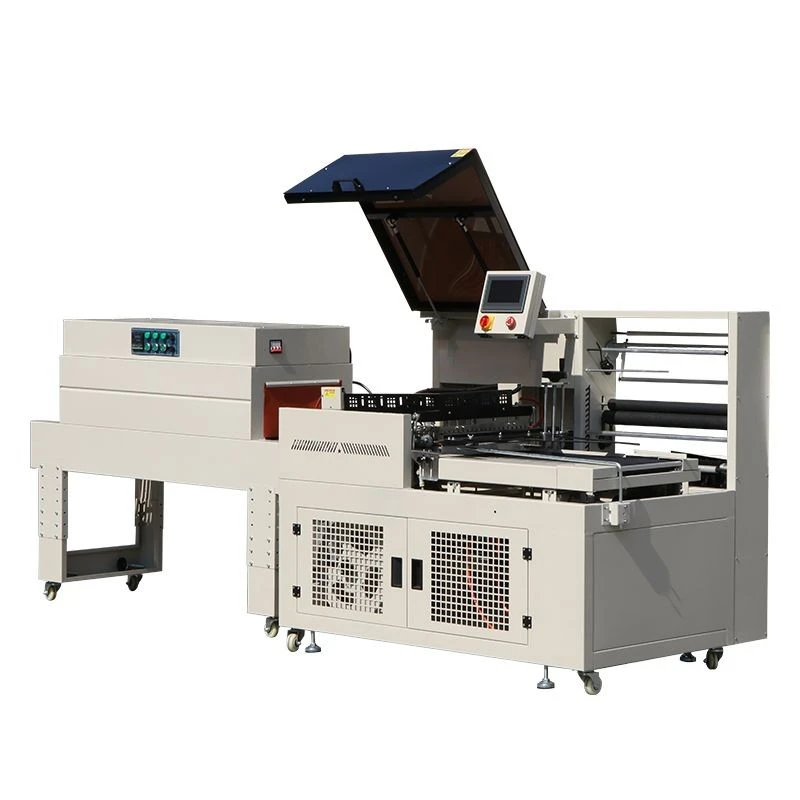

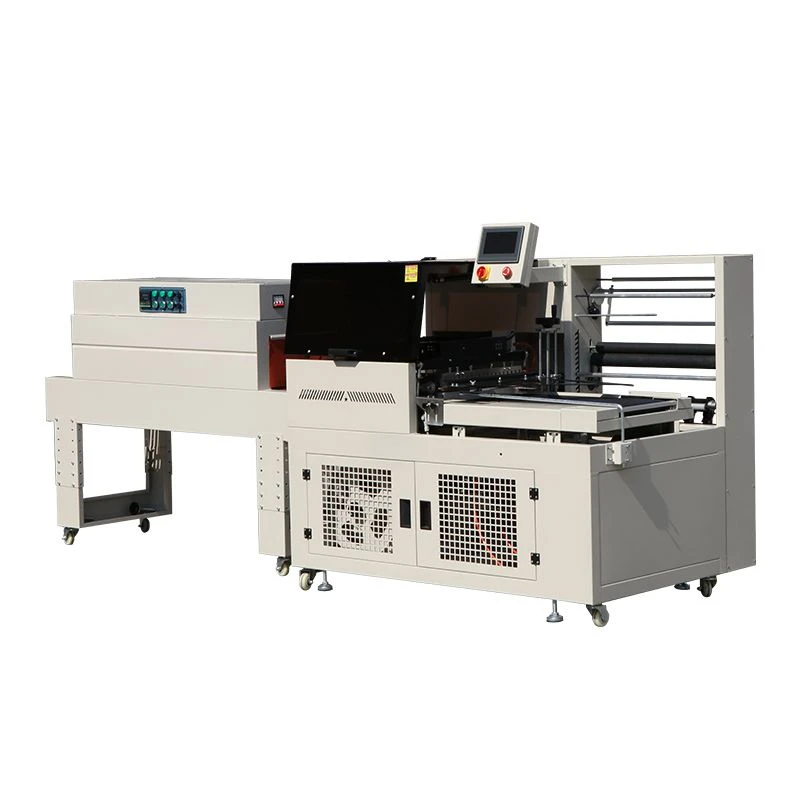

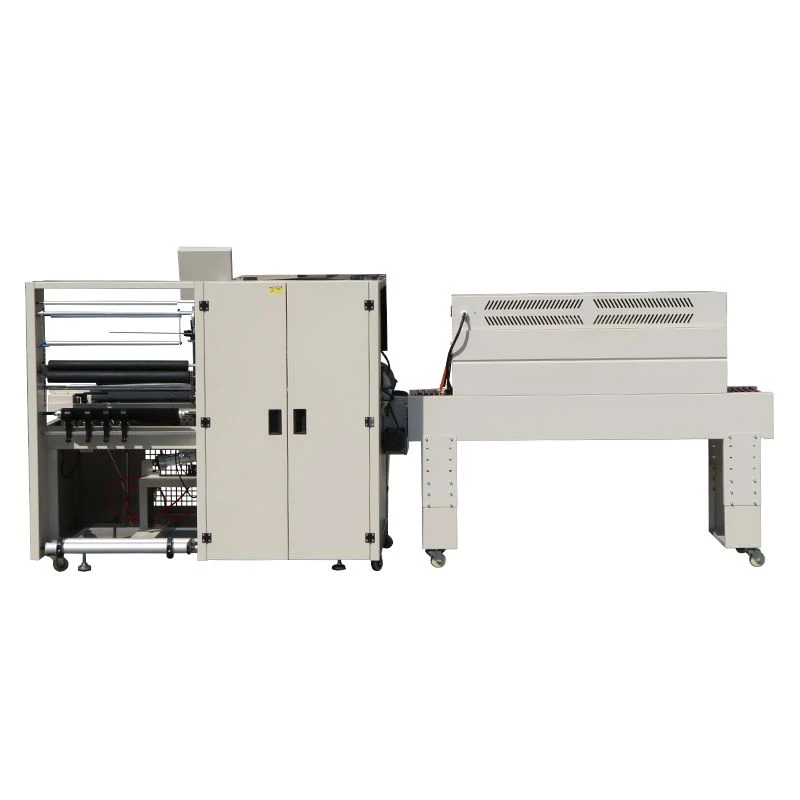

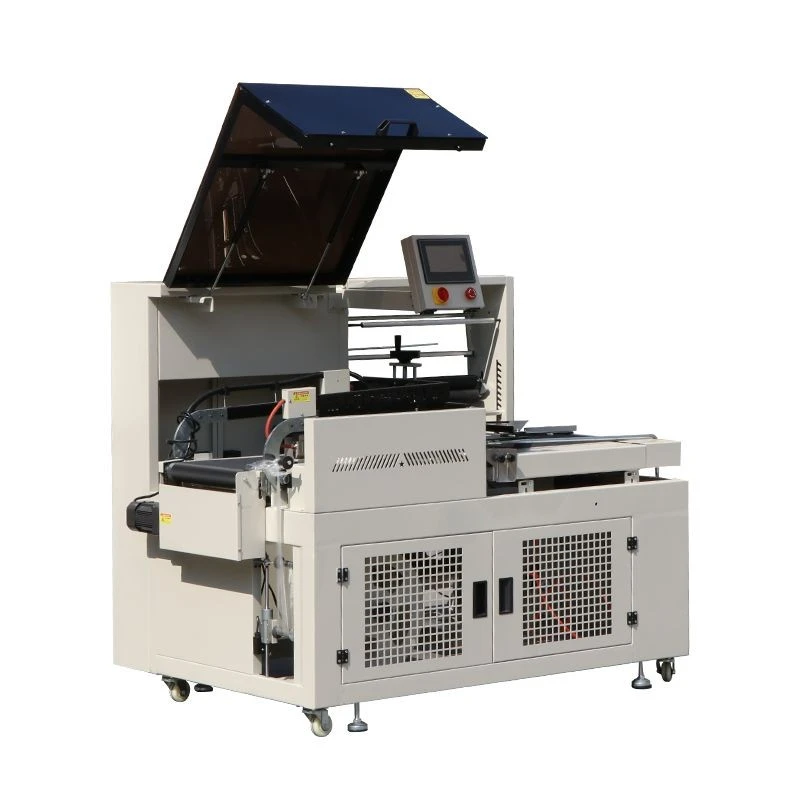

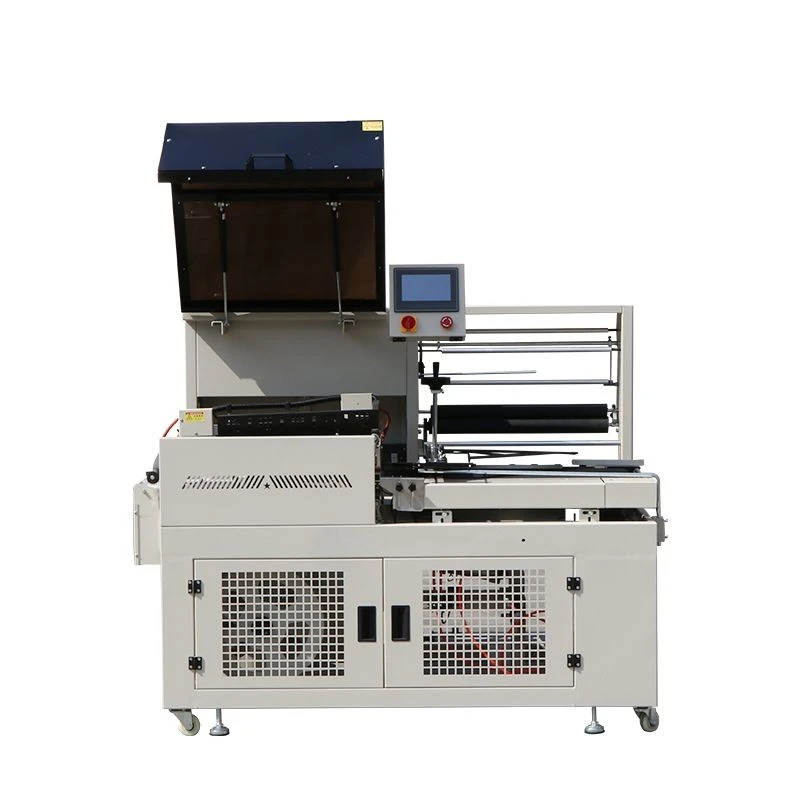

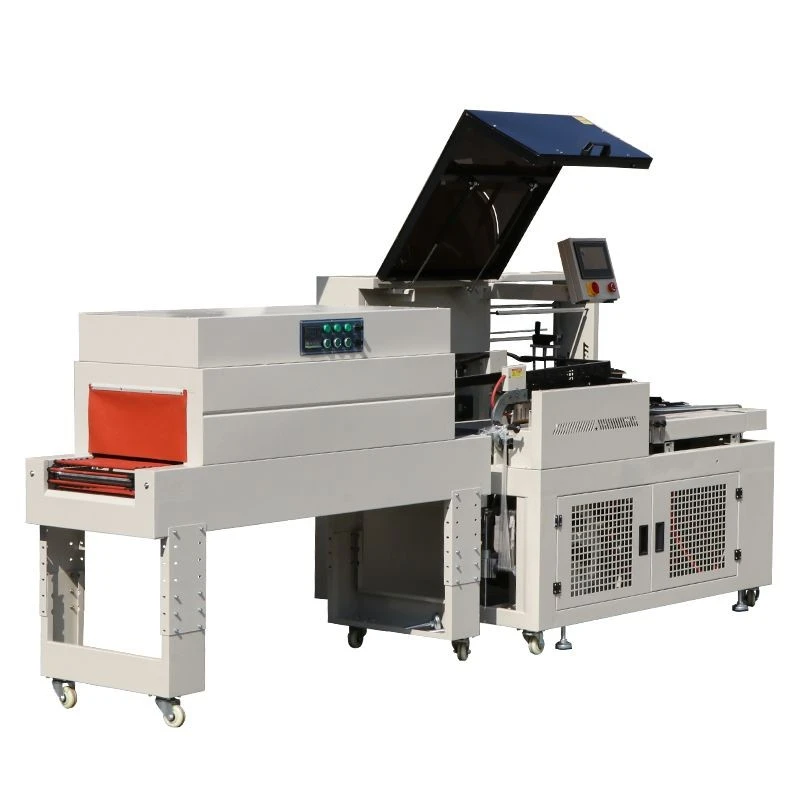

Gift Box Overwrapping Machine places a protective transparent film around gift boxes and shrinks it to follow the box shape. It is used where the product surface needs to remain clean, with a neat seam away from the main visual face. The main route includes film holder, guide area, L-bar sealing unit, conveyor, shrink tunnel, fan system and temperature control.
Product Parameters
|
Parameter |
Specification |
|
Sealer Models |
FQL-450 / FQL-550 / FQL-650 |
|
Tunnel Models |
BSE-4525 / BSE-5530 / BSE-6530 |
|
Sealer Power |
1.35kW / 1.4kW / 1.45kW |
|
Sealing Temperature |
180-300°C |
|
Sealing Time |
0.2-1.2s |
|
Film Thickness |
0.012-0.03mm |
|
Tunnel Power |
10kW / 11.5kW / 13kW |
|
Conveying Method |
Chain stick |
|
Applicable Shrink Film |
PE, POF, PVC, PP |
|
Package Focus |
Clear display face and controlled side seam |
Product Advantages
The sealing unit makes a tidy seam before the package enters the tunnel, which reduces open film edges on display packs.
Tunnel temperature and conveyor speed can be tuned, so paper boxes do not take too much heat.
Fan circulation pulls heat around raised edges and box corners for a smoother finish.
Chain-stick conveying keeps the package moving without heavy belt contact on glossy film.
Model choice can be adjusted by box width and height instead of using one fixed size.
Main Applications
Gift Box Overwrapping Machine is used for perfume boxes, cosmetic sets, souvenir boxes, tea gift packs and printed rigid cartons.
It suits products where the front panel, logo or paper wrap must stay visible after film shrinking.
Boxes with ribbon, sleeve or raised marks need a slow first trial so heat and pressure can be checked.
Packaging
- We clean exposed parts, fix movable sections and protect the control panel before shipment.
- Spare tools and small accessories are packed separately with labels.
- Wooden case or film wrapping can be selected by delivery distance and loading method.
FAQ
Q: What should be confirmed for Gift Box Overwrapping Machine?
A: Confirm box size, film type, display side, seam position, output need and sample appearance after cooling.
Q: Why is the display face important?
A: The seam should avoid the main printed face when possible, so the box looks cleaner on the shelf.
Q: Which films can be tested?
A: The BSE tunnel table lists PE, POF, PVC and PP, but the final film depends on box surface and shrink result.
