Products Description

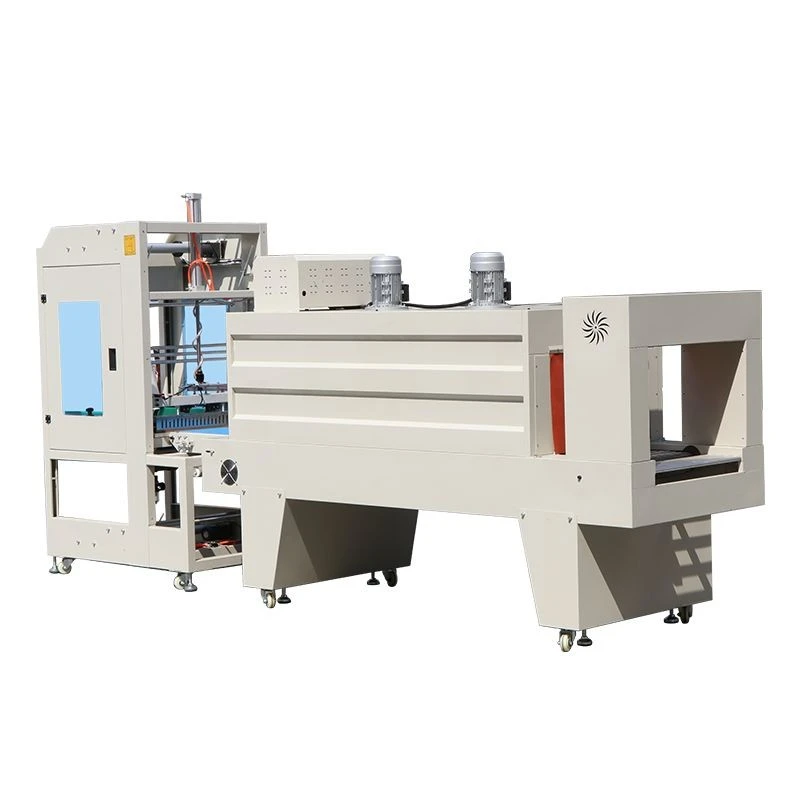

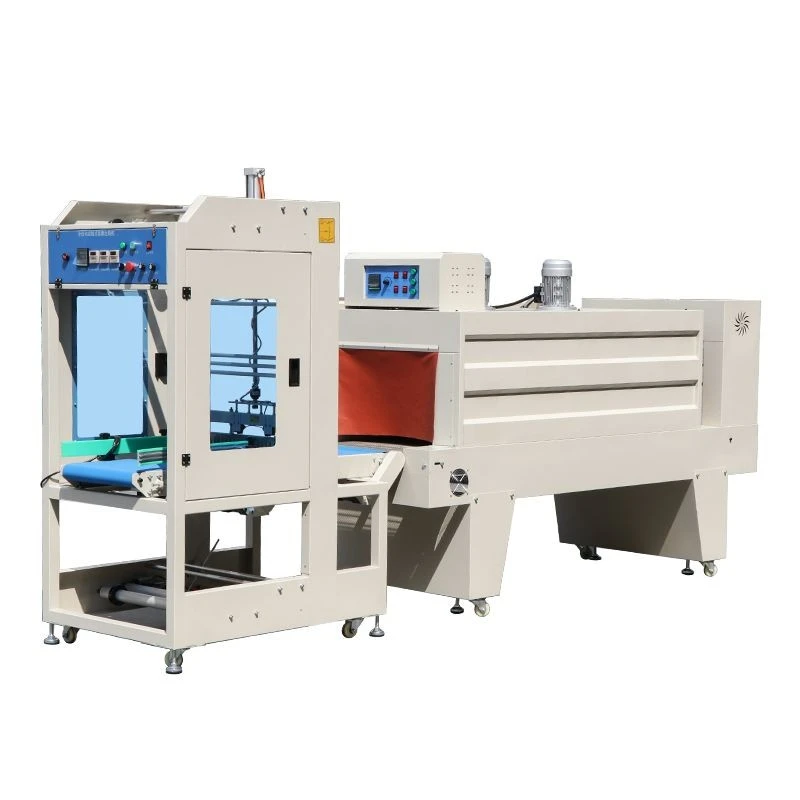

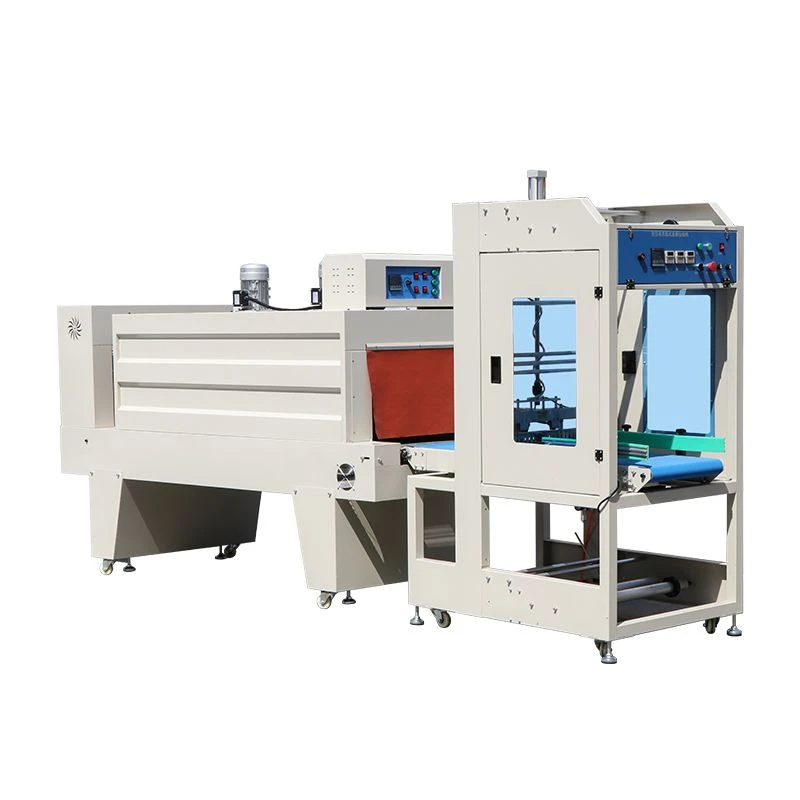

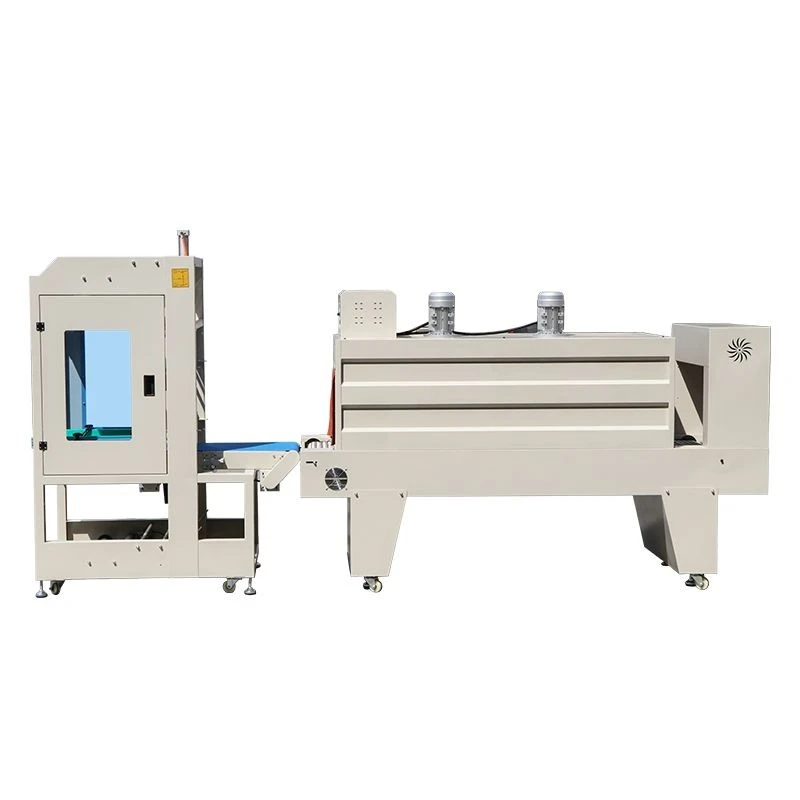

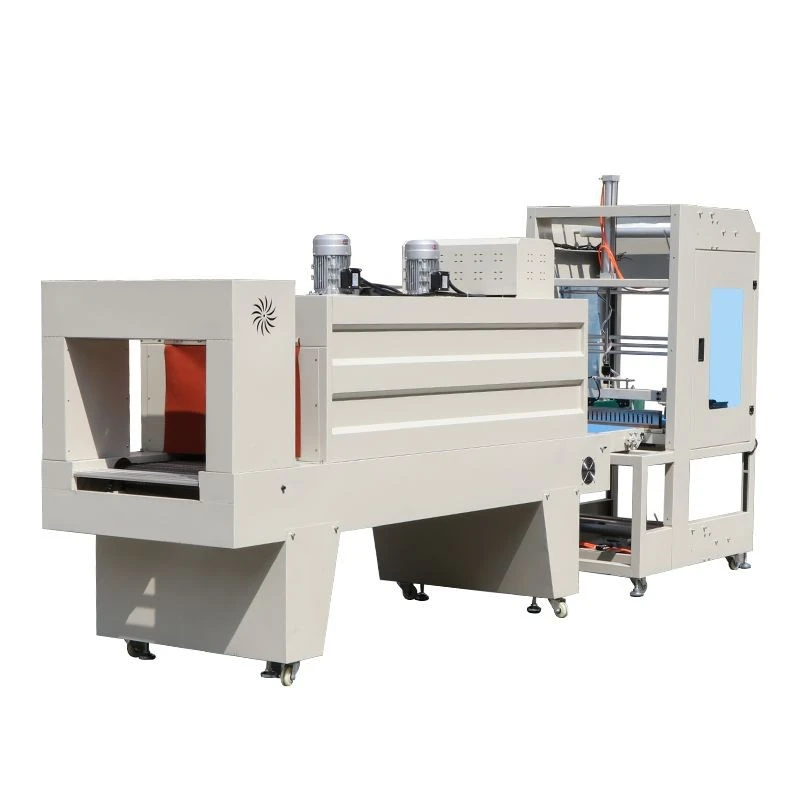

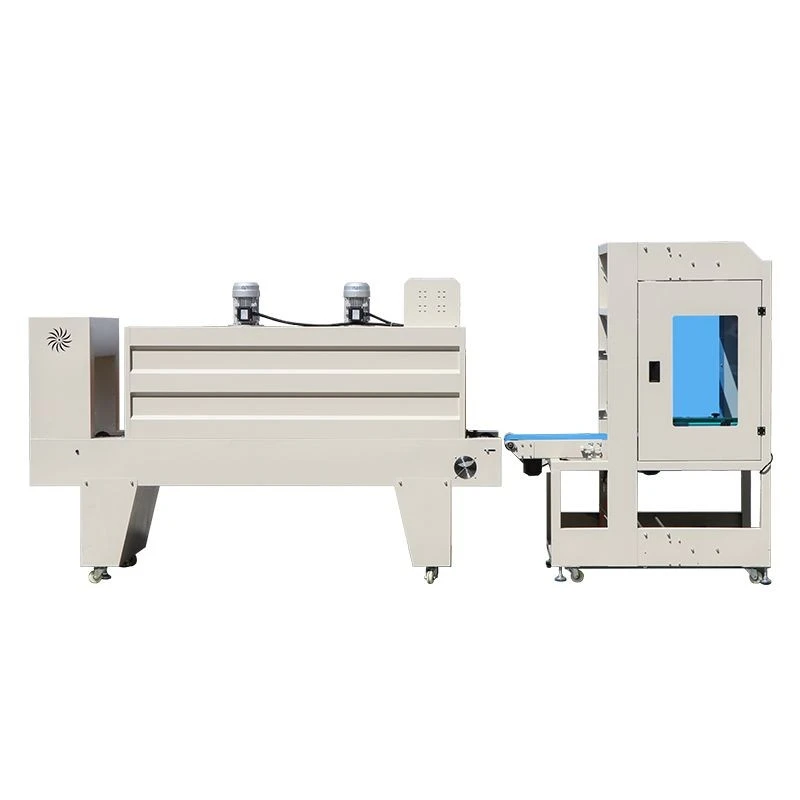

Hardware Shrink Wrapping Machine seals shrink film around hardware packs and tightens the film through a heat tunnel for storage or delivery. The product passes the guide frame, film holder and sealing knife, then moves through the tunnel on the conveyor. The system is selected by pack weight, film thickness, opening size and finished package requirement.
Product Parameters
|
Parameter |
Specification |
|
Sealer Models |
FQL-550 / FQL-650 / FQL-750 / FQL-850 |
|
Sealer Power |
1.4kW / 1.45kW / 1.5kW / 1.55kW |
|
Film Thickness |
0.012-0.03mm |
|
Working Air Pressure |
0.5-0.6MPa |
|
Packaging Speed |
0-40 pcs/min |
|
Tunnel Models |
BSE-5530 / BSE-6530 / BSE-7530 / BSE-8530 |
|
Tunnel Power |
11.5kW / 13kW / 14.5kW / 16kW |
|
Conveying Load |
30kg |
|
Applicable Shrink Film |
PE, POF, PVC, PP |
|
Sample Check |
Box weight, sharp corners and tunnel transfer |
Product Advantages
The FQL sealing frame can be selected for wider or heavier hardware packs by product size.

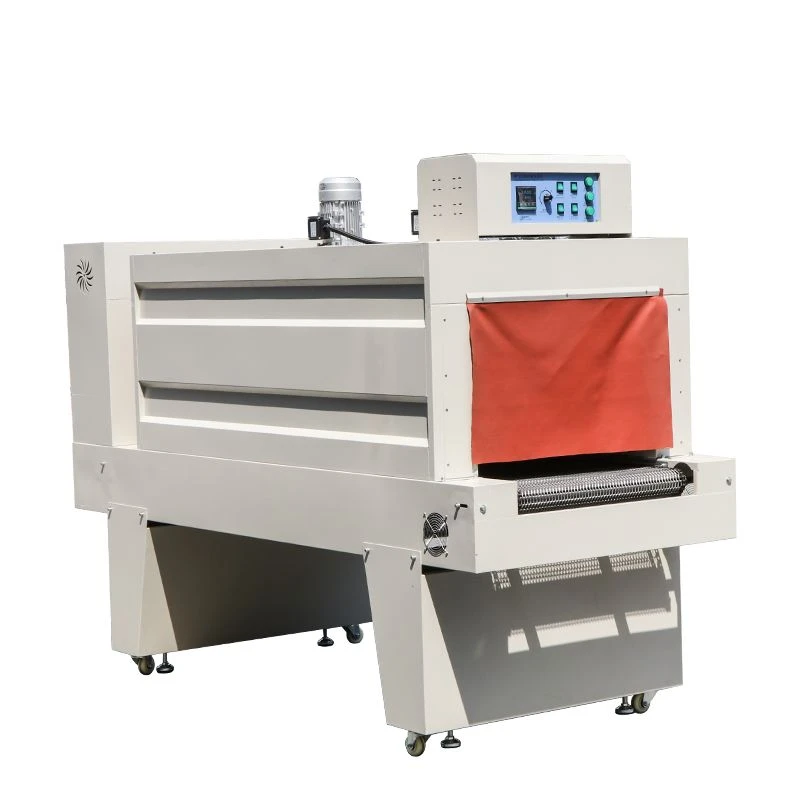

The BSE tunnel range offers chain-stick conveying and adjustable temperature for different pack weights.
Film thickness from 0.012-0.03mm helps cover sharp carton edges after sample confirmation.
The conveying load and outlet transfer are checked so filled hardware boxes move steadily.
Safety covers and electrical response are reviewed before delivery.
Main Applications
It is used for boxed tools, fastener kits, spare parts, hardware gift sets and small industrial packages.
The machine is selected when the pack needs dust protection and a more stable outside cover.
For products with loose parts, samples should be tested after real filling because weight distribution can change.
Quality Check
- We test the inlet, sealing area, tunnel transfer and outlet with real hardware samples.
- Sharp corner positions are checked because thin film can tear at contact points.
- Guide marks can be kept for common box sizes.
FAQ
Q: What details are important for Hardware Shrink Wrapping Machine?
A: Product weight, sharp corner position, film thickness, box size and tunnel opening should be confirmed.
Q: Which films can be used?
A: The BSE tunnel table lists PE, POF, PVC and PP shrink film.
Q: Why is a filled sample recommended?
A: Filled samples show real weight, corner pressure and conveyor behavior.
