Products Description

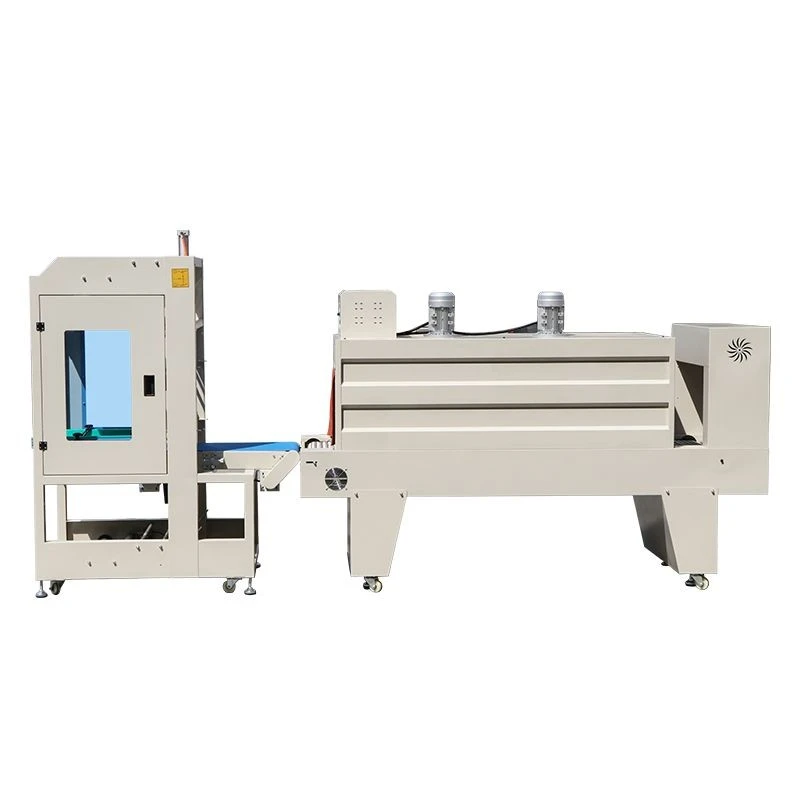

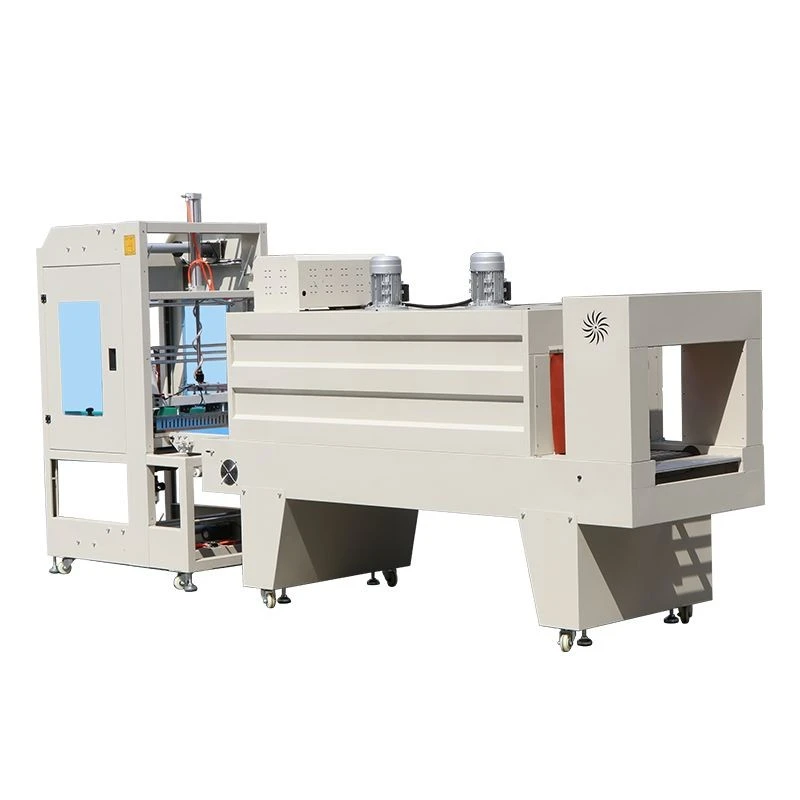

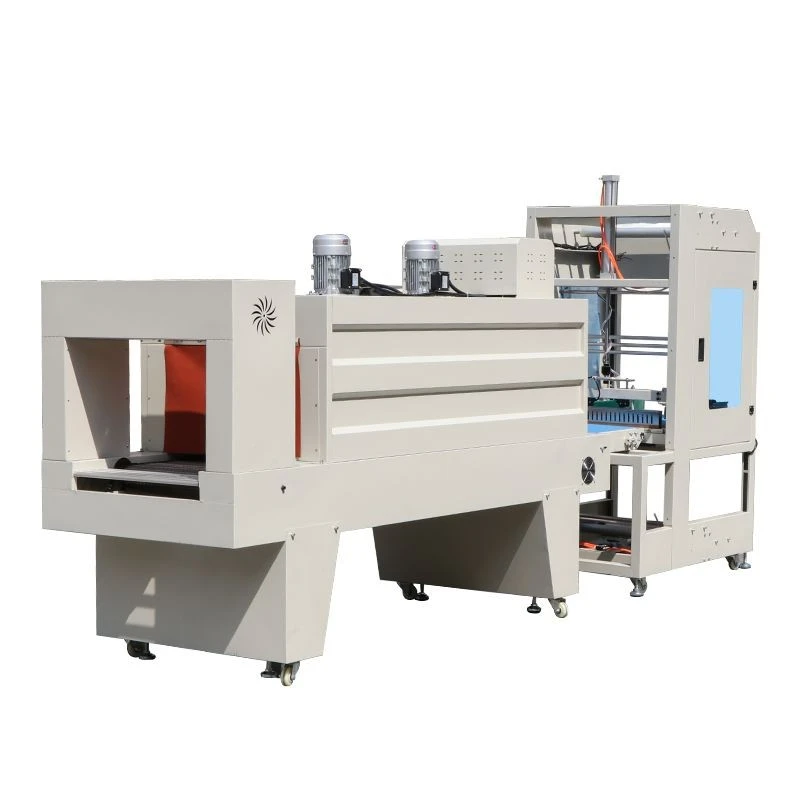

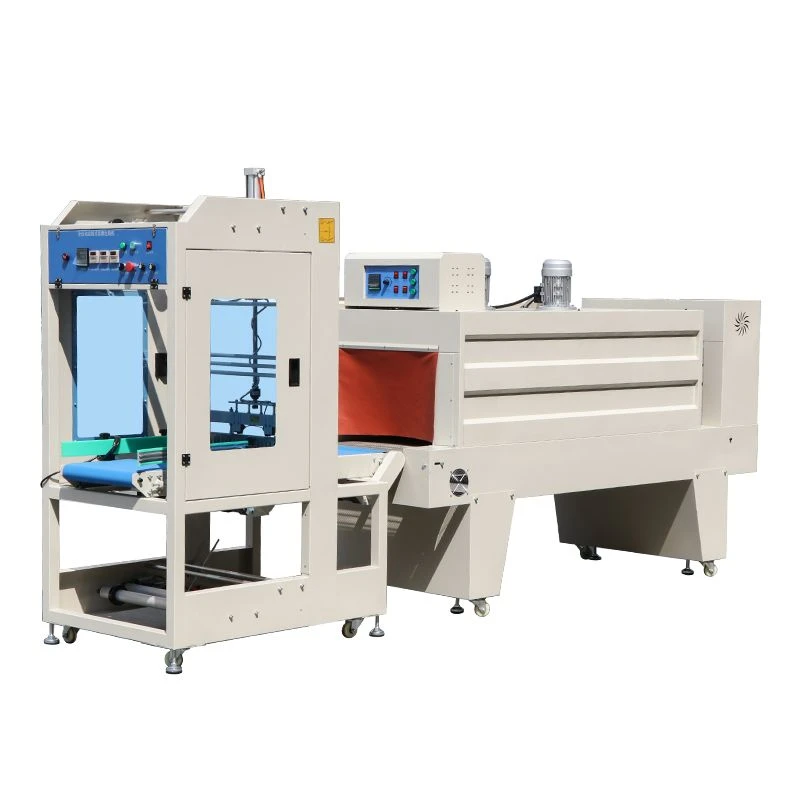

Compact Heat Shrink Tunnel is a shrink tunnel section for PE, POF, PVC and PP film. Wrapped products enter the heating chamber, the hot air tightens the film, and the conveyor sends the pack out for cooling. Its main structure includes the heating chamber, fan, conveyor, control panel and belt support.
Product Parameters
|
Parameter |
Specification |
|
Model |
BSE-4020 |
|
Power Supply Voltage |
220V 50Hz |
|
Power |
6kW |
|
Conveying Speed |
0-15 m/min |
|
Shrink Furnace Size |
L800*W450*H200mm |
|
Applicable Shrink Film |
PE, POF, PVC, PP |
|
Overall Dimensions |
L1100*W560*H700mm |
Product Process
1. Confirm product height and film type before temperature adjustment.
2. Run the first wrapped samples at low speed through the chamber.
3. Check the cooled pack shape before increasing conveyor speed.
The BSE-4020 furnace size, L800*W450*H200mm, helps confirm whether the product can pass through the chamber.
Small workshops still need space after the tunnel for cooling and collection.
Film behavior should be judged after the pack cools, because hot film can look tighter than the final result.
Packaging
The tunnel is cleaned and fixed after the final trial run.
Loose items are boxed and marked with the order list.
Outside packing is selected by delivery distance and unloading method.
Use Notes
- Start with low speed when a new film or product is used.
- Keep the chamber clear of film scraps during long running.
- Check fan response, heater response and belt movement before each shift.
FAQ
Q: What is the power of Compact Heat Shrink Tunnel?
A: The BSE-4020 catalogue value is 6kW with 220V 50Hz power supply.
Q: What films can it use?
A: PE, POF, PVC and PP are listed in the catalogue.
Q: What should be checked after transport?
A: Check the chamber, fan, conveyor, control panel, fixing bolts and accessories before running.
