Products Description

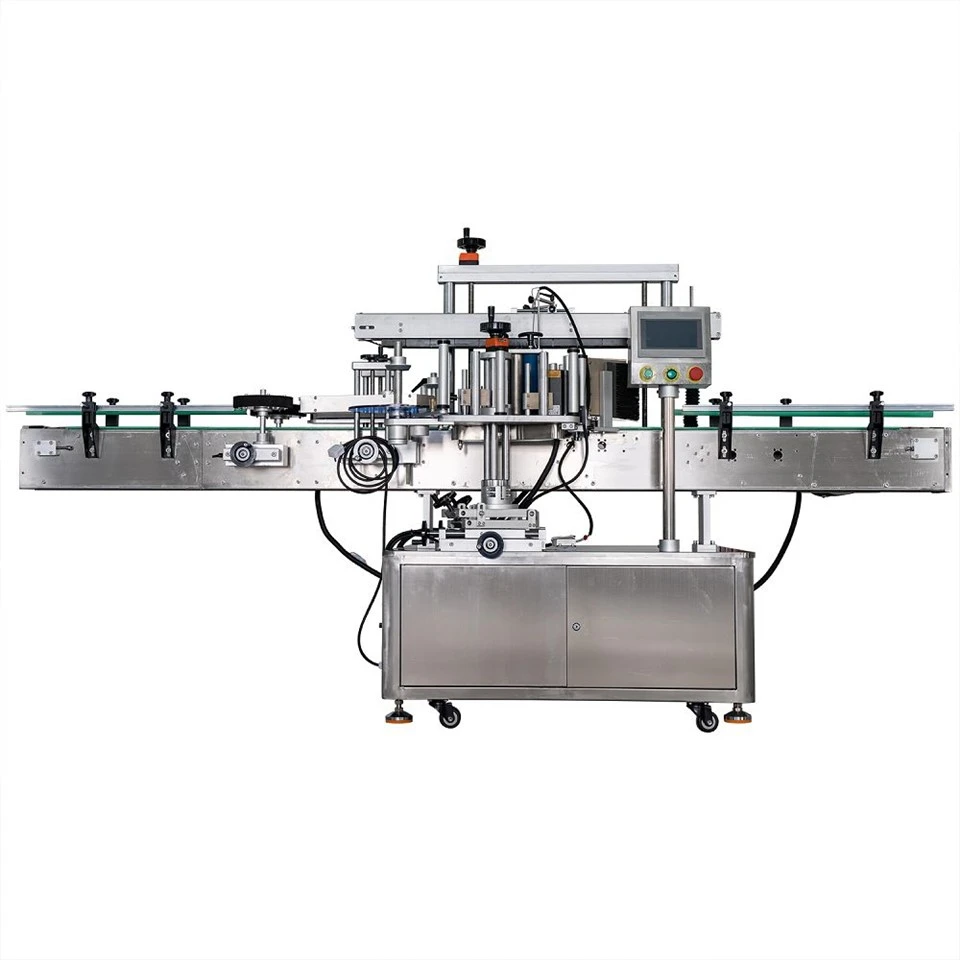

Surface Label Applicator places a label on a defined surface before the product moves to packing, storage or shipment. It is used for cartons, covers, trays, cards, panels and other products where the label must avoid seals, handles or printed areas. The main parts are label head, roll holder, sensor, peel plate, surface pressing unit, conveyor and control panel.
Product Parameters
|
Parameter |
Specification |
|
Labeling Face |
Top, side or other visible surface confirmed by sample |
|
Label Control |
Stepper motor search and control with photoelectric detection |
|
Catalogue Speed |
More than 50-100 pcs/min, depending on product size |
|
Catalogue Accuracy |
±3mm, excluding product and label tolerance |
|
Marking Speed |
31 m/min |
|
Conveyor Belt Speed |
31 m/min |
|
Applicable Labels |
Opaque or semi-transparent self-adhesive roll labels |
|
Roll Size |
76.2mm inner diameter; 260mm maximum outer diameter |
|
Power Source |
AC220V±5%, 50/60Hz |
|
Power |
≤400W |
Product Advantages
The applicator head can be arranged for top or side labeling after the product direction is confirmed.
The open label route makes roll loading, waste liner collection and sensor cleaning easier.
Photoelectric detection reads the label gap and product position before release.
Pressing parts can be changed for flat board, carton surface or slightly textured material.
Alarm prompts help operators locate label shortage, web break or no-product conditions.
Main Applications
Surface Label Applicator is used for shipping cartons, plastic lids, trays, flat bags, product cards, metal panels and display boxes.
It suits address labels, barcode labels, inspection stickers, warning marks and product information labels.
Low-reflection surfaces, transparent labels and rough cartons should be tested with actual material.
Quality Check
- We check label edge distance, loose corners, wrinkles and readable code position.
- Conveyor speed and pressing pressure are reviewed with the fastest common product size.
- Accepted samples and settings are kept before export packing.
FAQ
Q: When is sample testing needed for Surface Label Applicator?
A: It is needed when surface material, label size or label position is strict.
Q: What label roll size is listed?
A: The catalogue lists 76.2mm inner diameter and 260mm maximum outer diameter.
Q: Can the applicator be customized?
A: Conveyor length, guide width, guard form and line connection can be discussed before production.
