Products Description

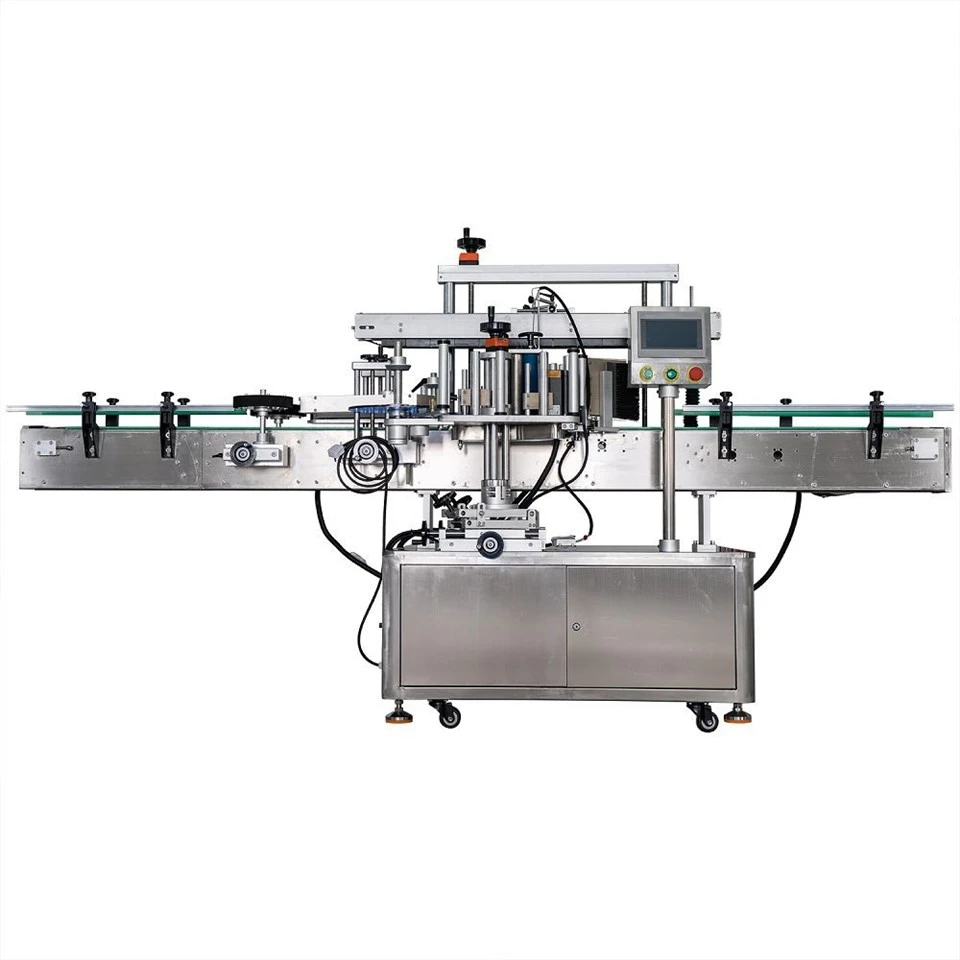

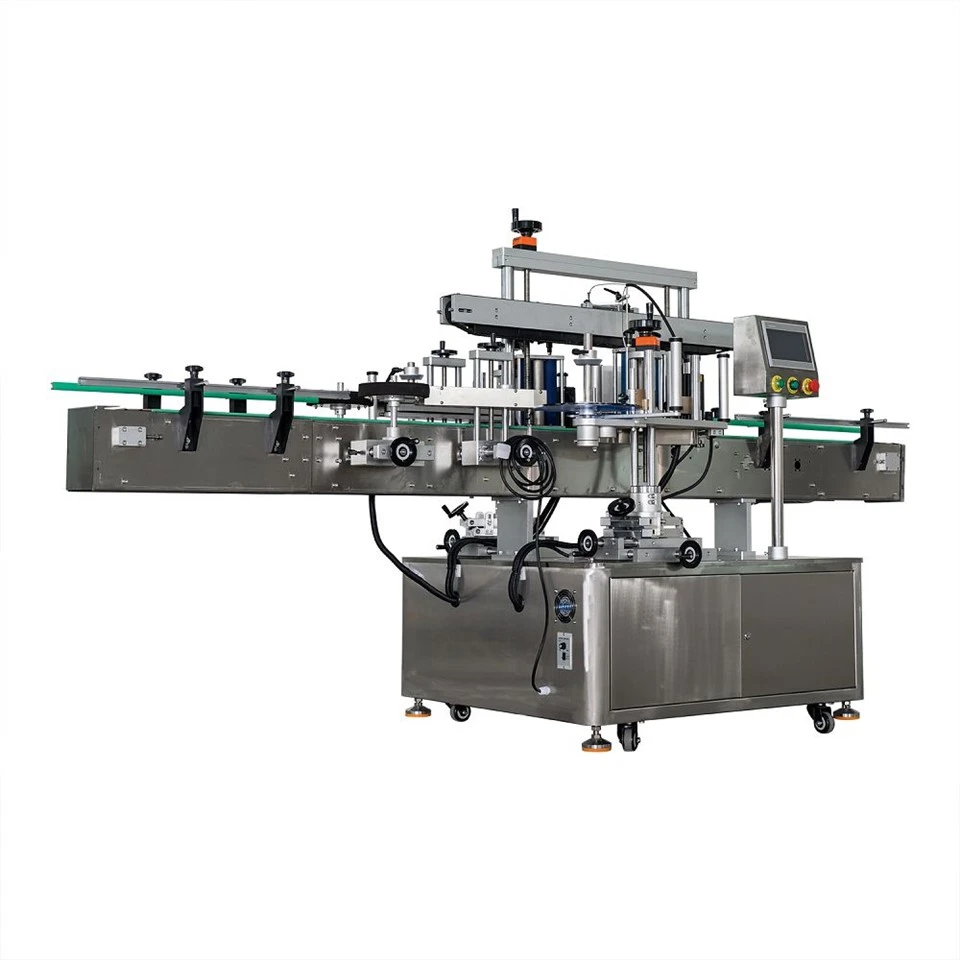

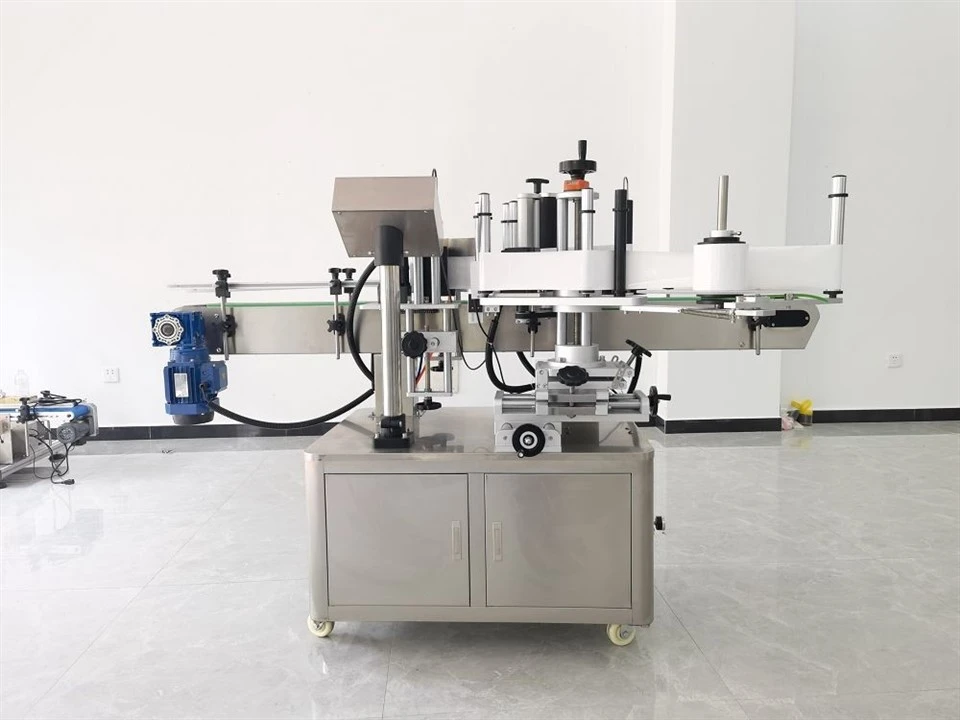

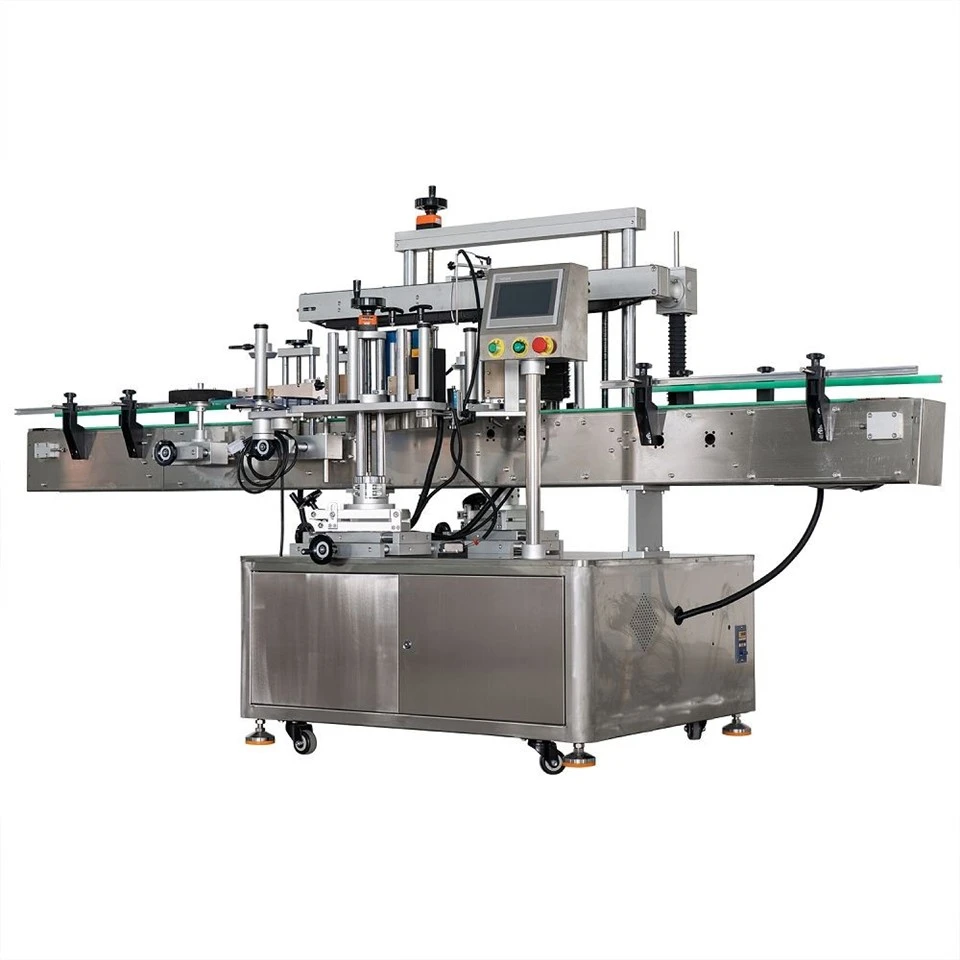

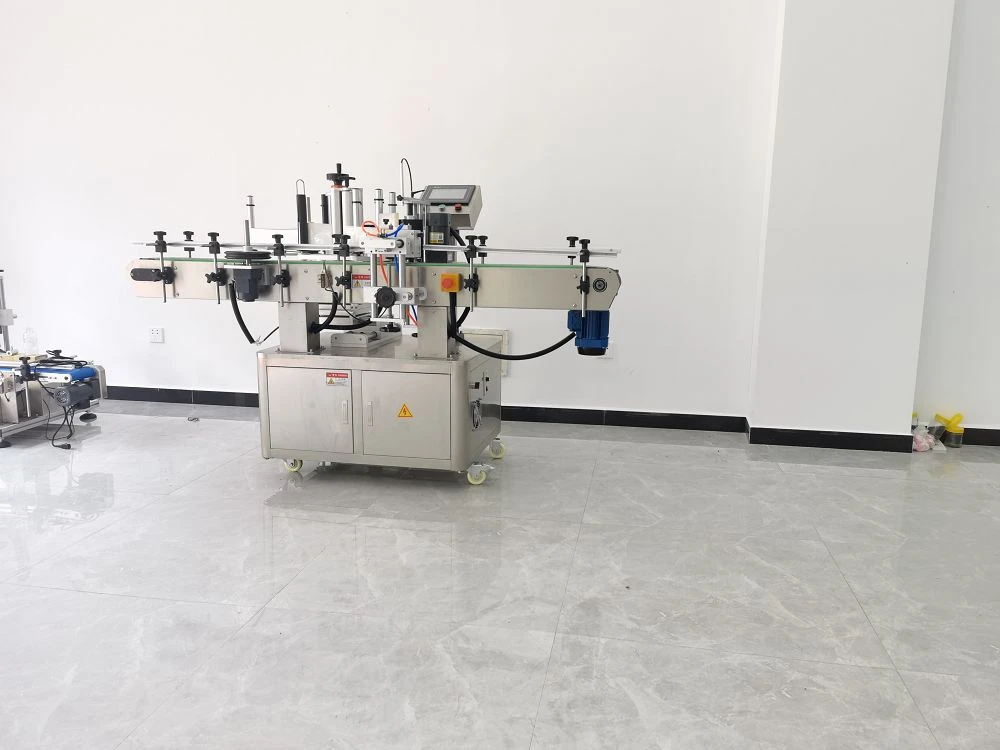

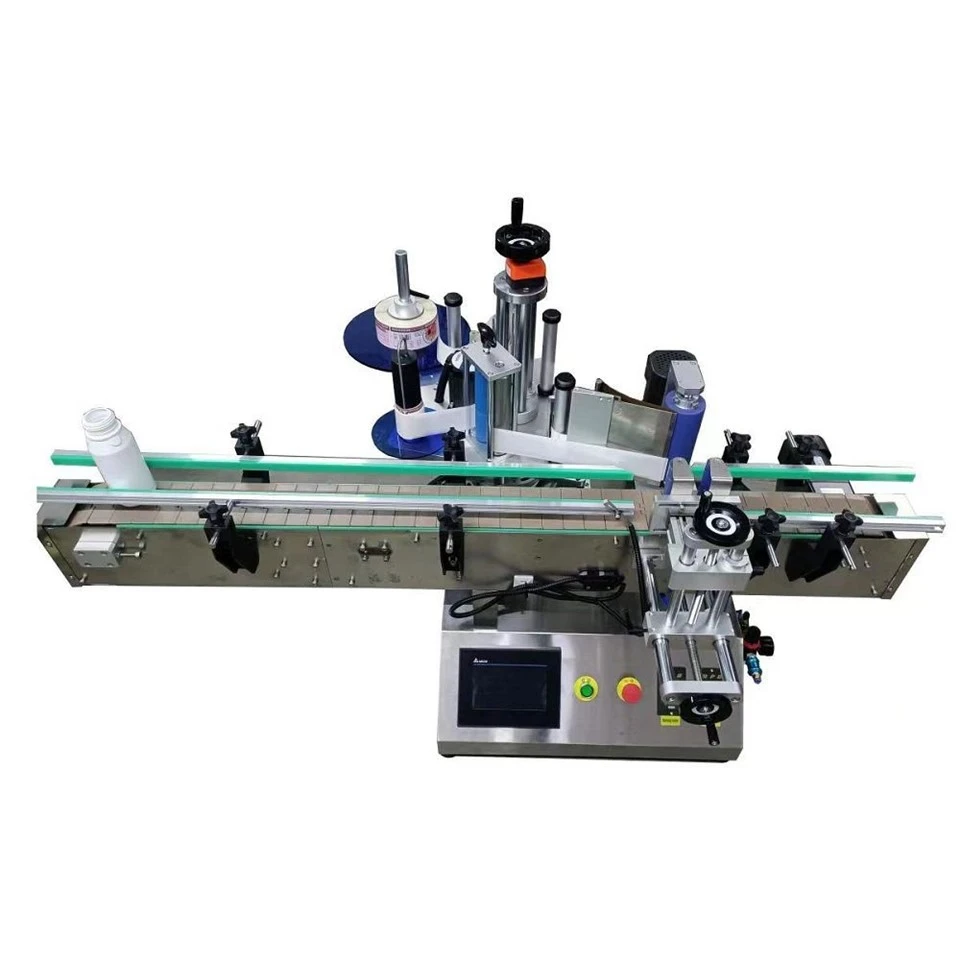

The Round Bottle Labeling Machine works on containers with a circular side wall. A bottle moves into the station, the side guide holds its body, the adhesive label separates from its liner, and the pressing/rotation area lays the label onto the curved wall. It is used for beverage bottles, cosmetic jars, medicine bottles, reagent bottles, sauce containers and metal cans. The machine is suitable when a side sticker must stay level around a round package and the first label edge must not shift during the pasting step.
Product Parameters
|
Container / label item |
Range or setting |
|
Container shape |
Round bottle, jar, can or similar cylinder |
|
Bottle diameter |
20-120mm |
|
Container height |
40-300mm |
|
Label length |
15-300mm |
|
Label width direction |
50-130mm |
|
Maximum listed output |
120 labels/min |
|
Accuracy basis |
+/-0.5mm under reference conditions |
|
Electrical data |
single phase 220V, 50/60Hz; 0.6 kW |
Main Applications
Beverage packaging: side labels for PET drink bottles, glass bottles and small nutrition bottles.
Cosmetic packaging: brand stickers on lotion bottles, cream jars and round care-product containers.
Medical and lab packaging: warning labels, traceability stickers and product information on vials or reagent bottles.
Food and sauce packaging: body labels on jars, condiment bottles and clean cylindrical cans.

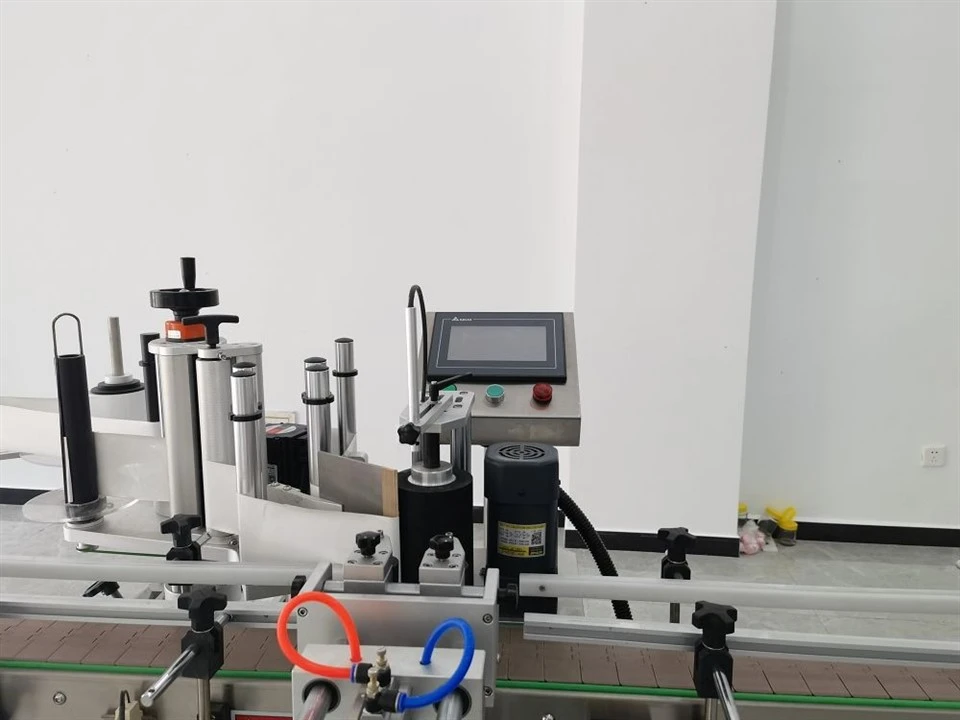

Components
Bottle guide rails: align the round container before the label edge touches the wall.
Label feed head: sends the self-adhesive label to the release point at the required moment.
Side pressing roller: follows the bottle body and pushes the sticker against the curved surface.
Conveyor section: moves containers through the labeling area at a stable interval.
Product Advantages
The Round Bottle Labeling Machine is easier to adjust for short-run bottle changes because the main work is guide width, pressure distance and label delay.
Rotation-assisted pressing reduces the wrinkle risk that can appear when a flat label head is used directly on a cylindrical wall.
Filled or weighted bottles can be tested to match real production movement, which helps stabilize the paste result.
For barcode labels, the side wall can be checked after labeling to make sure the code remains flat enough for scanner reading.
FAQ
Can one unit handle several bottle diameters?
Yes, if each bottle size remains inside the listed 20-120mm range. The guide position and pressing distance should be reset for every diameter.
Why are filled samples useful?
A very light empty bottle may slide or shake under roller pressure. Filled or weighted samples give a more reliable adjustment result.
Where is this equipment commonly used?
The Round Bottle Labeling Machine is commonly used on beverage, cosmetic, medicine, food and lab packaging lines that need side labels on round containers.
