Products Description

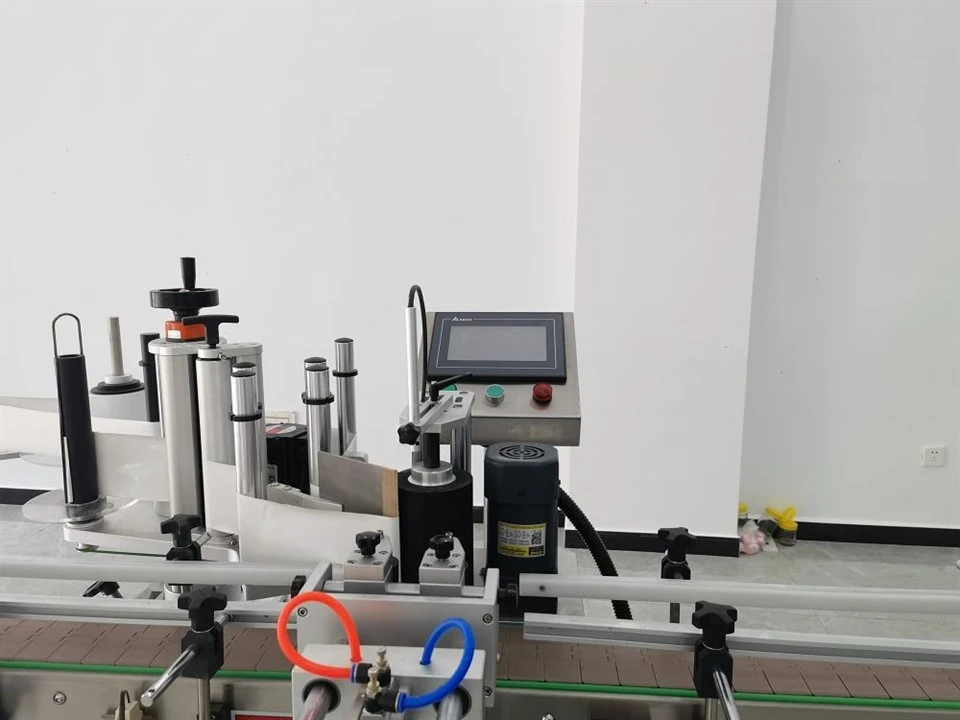

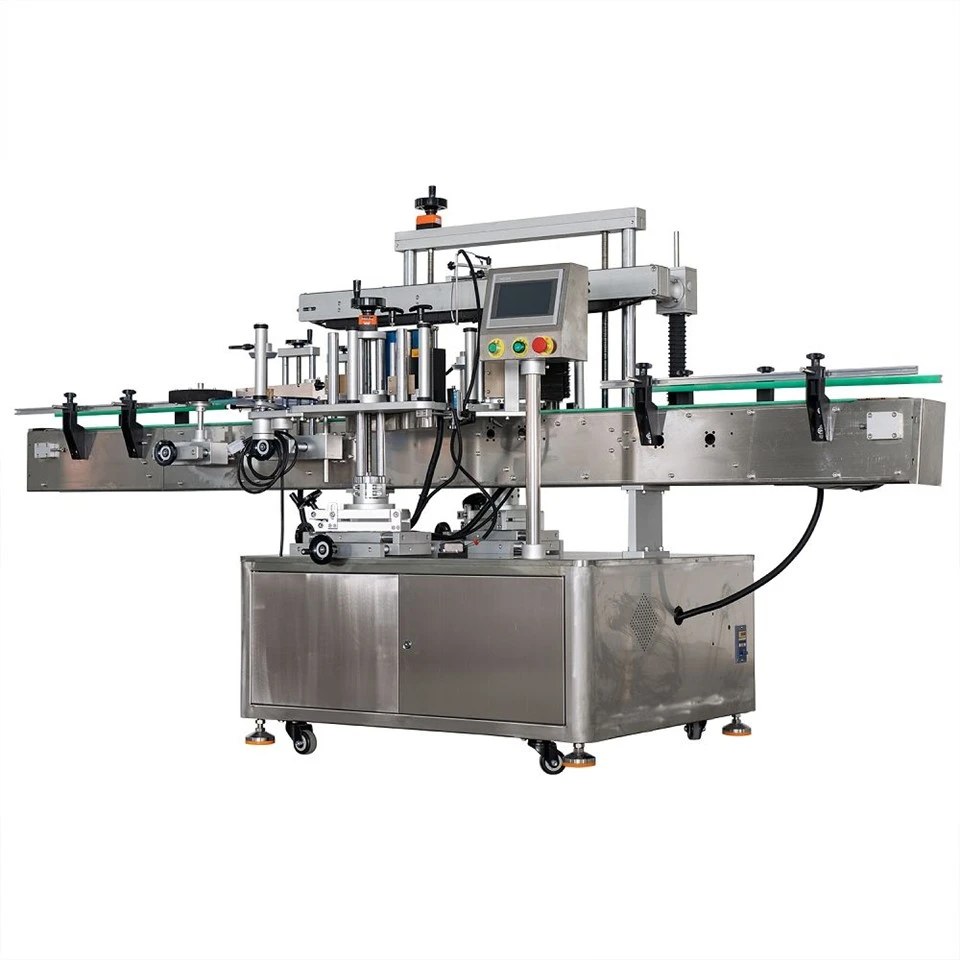

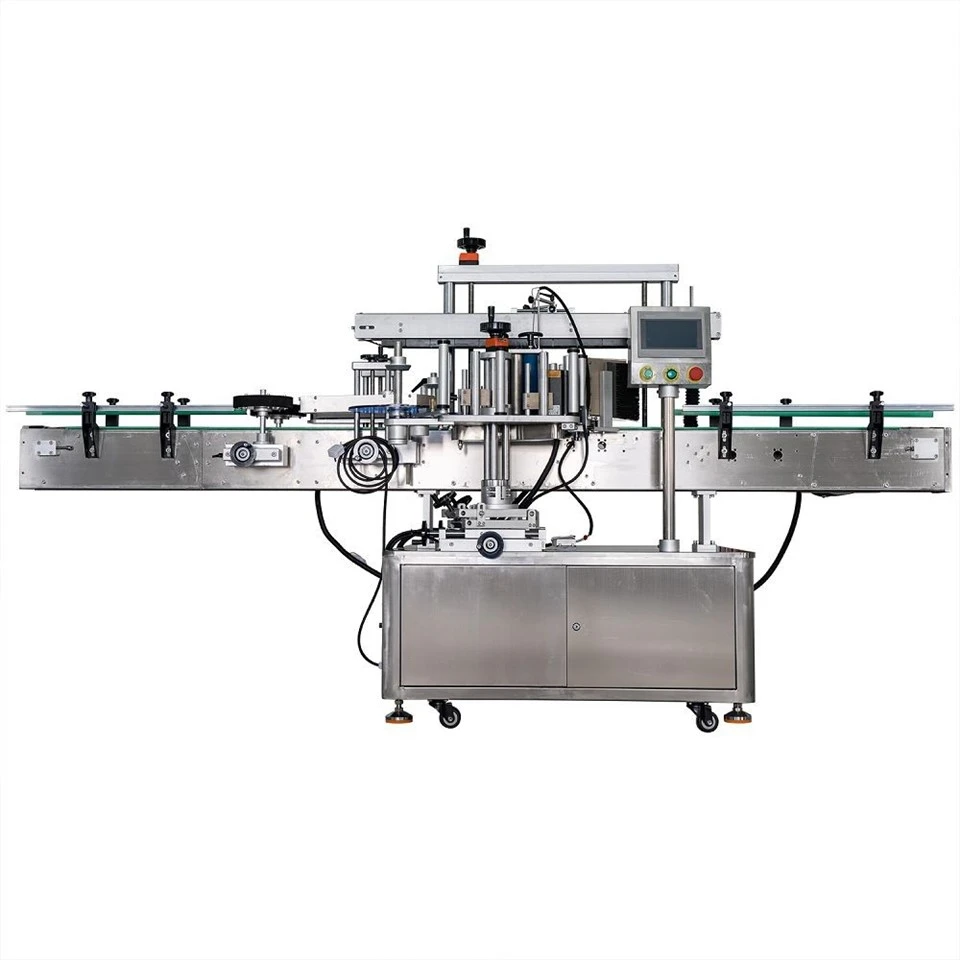

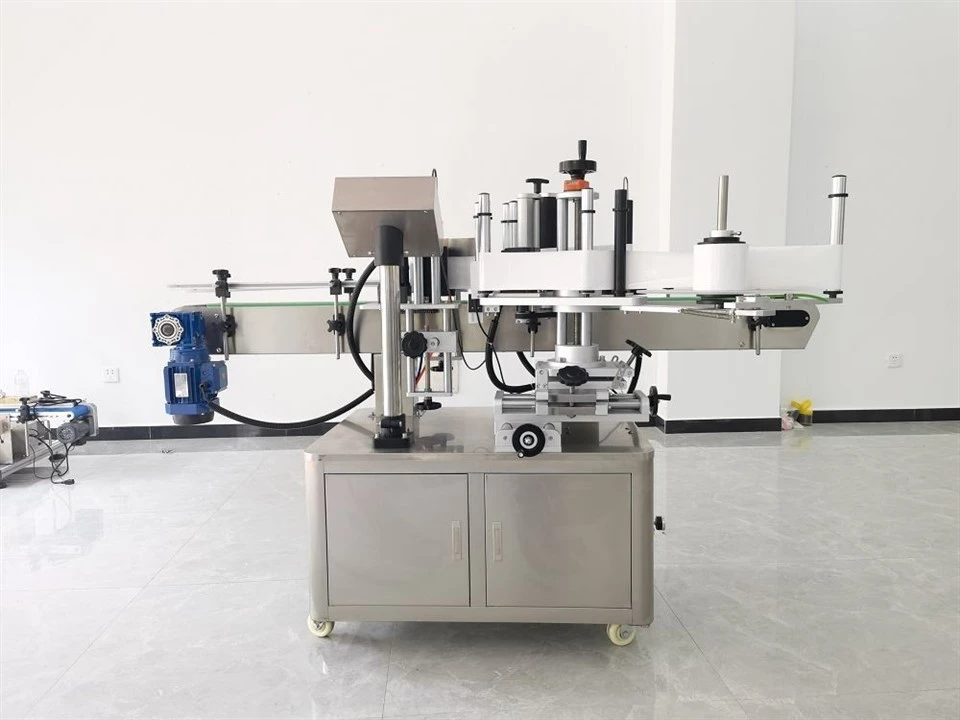

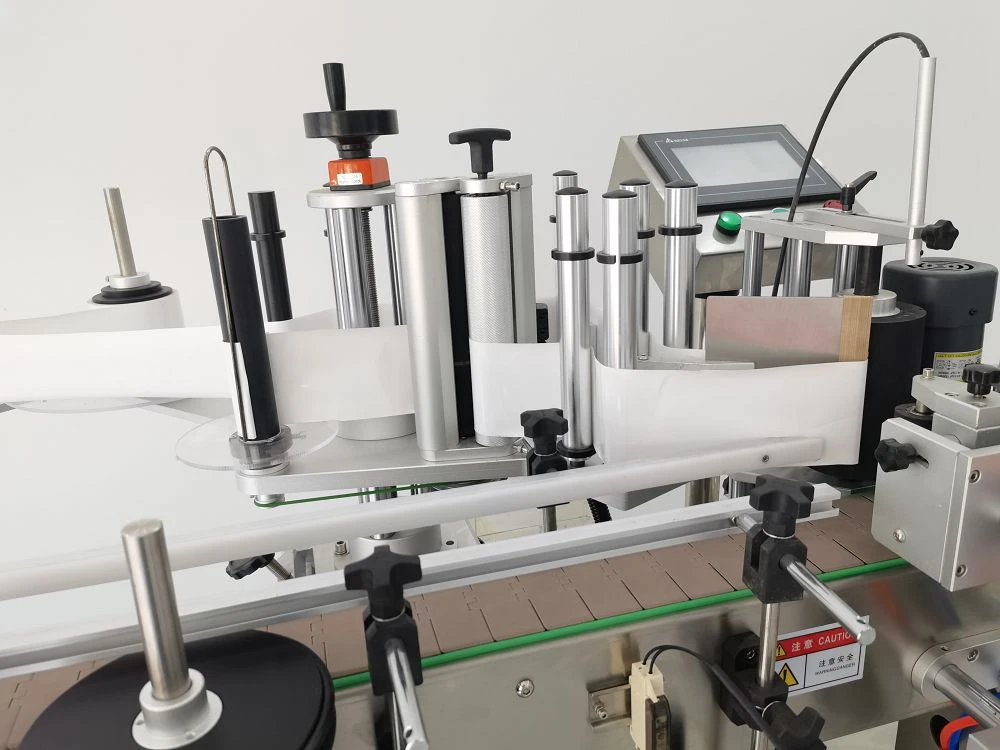

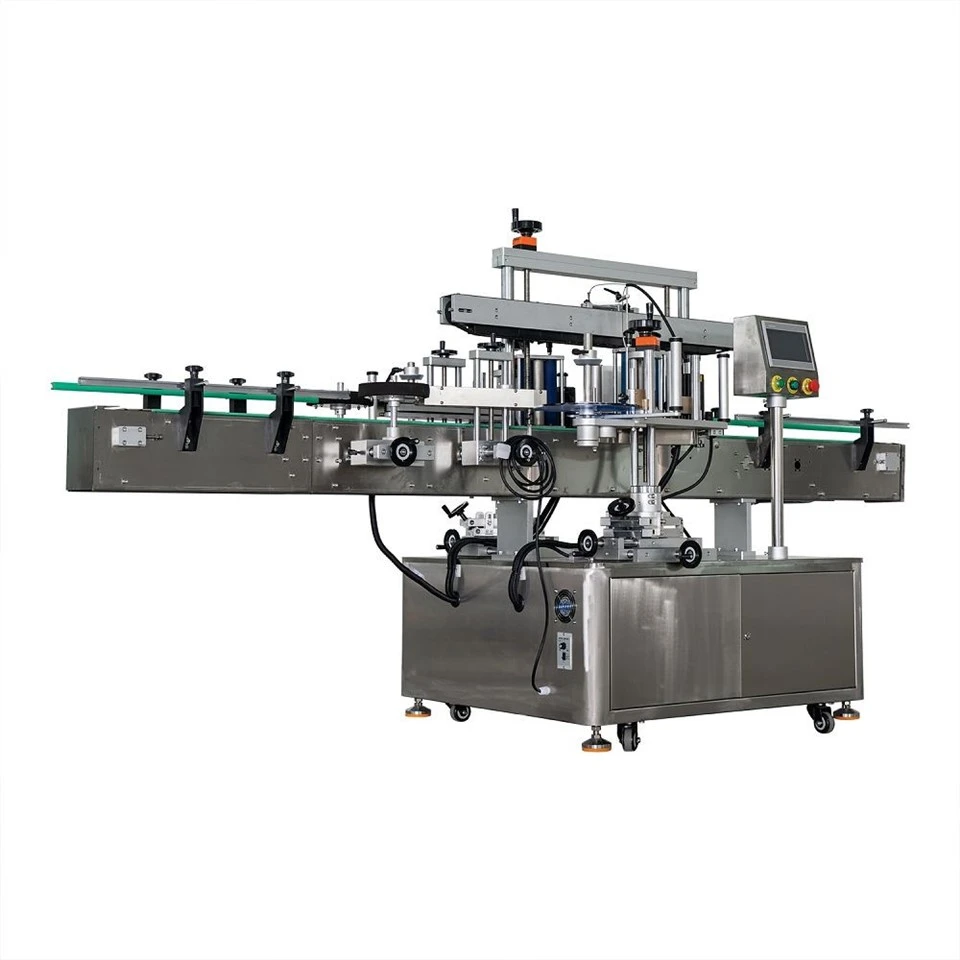

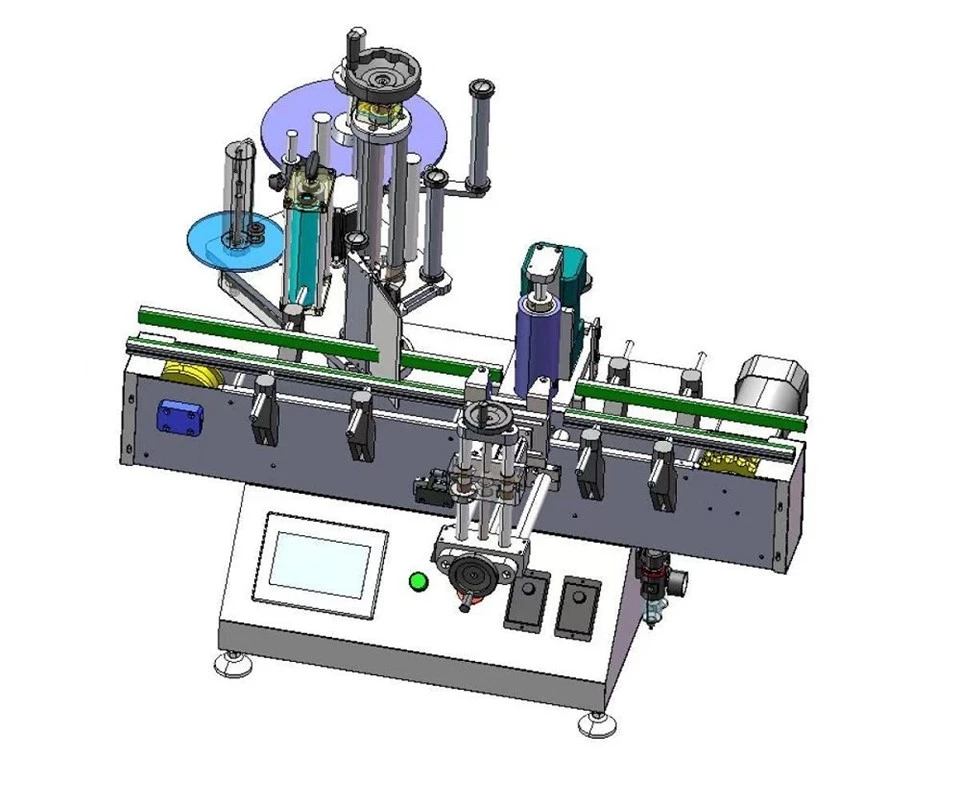

High Precision Label Applicator applies self-adhesive labels at a controlled stop point instead of only feeding by eye. It is used for flat packs, small boxes, cards and goods that need a label close to a set edge. The working parts include label roll holder, sensor, stepper feed, peel plate, conveyor, pressing plate and control interface.
Product Parameters
|
Parameter |
Specification |
|
Product Route |
Fixed stop point for label edge control |
|
Label Control |
Stepper motor search and control with photoelectric detection |
|
Catalogue Speed |
More than 50-100 pcs/min, depending on product size |
|
Catalogue Accuracy |
±3mm, excluding product and label tolerance |
|
Marking Speed |
31 m/min |
|
Conveyor Belt Speed |
31 m/min |
|
Label Roll |
76.2mm inner diameter; 260mm maximum outer diameter |
|
Backing Paper |
Opaque label or semi-transparent glassine backing paper |
|
Power Source |
AC220V±5%, 50/60Hz |
|
Power |
≤400W |
Product Advantages
Stepper feeding gives measured label movement when short labels repeat quickly.
Product and label sensors help release the label only after the product reaches the set point.
The control panel allows fine changes to stop position, label length and feed delay during sampling.
Fault alarms remind the operator when the label web breaks or the product is missing.
The stainless steel and aluminum structure gives a clean label path around the peeling area.
Quality Check
For High Precision Label Applicator, we measure the front edge, side edge and repeated position from several samples.
Backing paper tension and peel angle are checked because they affect small labels.
Printer or coder space is confirmed before wiring if date marking is required.
Use Notes
- Record the accepted label length and product stop value after the first sample batch.
- Clean the sensor lens and peel plate when dust or glue residue appears.
- Replace one roll at a time and check the first three labeled pieces before full running.
FAQ
Q: What details are needed for High Precision Label Applicator?
A: Send product size, label roll, target edge, roll direction, required position and sample tolerance.
Q: What accuracy is shown in the catalogue?
A: The catalogue shows ±3mm, excluding product and label tolerance.
Q: Why should real labels be tested?
A: Release force, glue tack and backing paper tension can change the final label edge.
